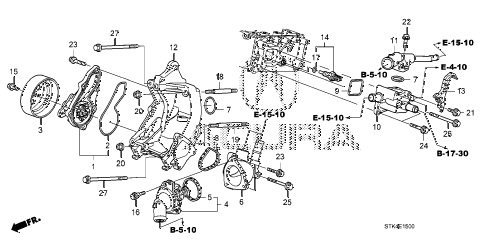

2009 RDX TECH 5 DOOR 5AT WATER PUMP diagram
Back to Top
water pumpgasket, water pumppulley, water pumpthermostat assy. (fuji seiko)seal, thermostat cover (nippon thermostat)case, thermostato-ring (43.8x3.1)o-ring (43.8x3.1)seal, thermostat caseseal, water outletlower water outletupper water outletpassage, waterstay e, engine harnesssensor assy., water temperature (panasonic)bolt, special (6x12)bolt, special (6x19) (nippon thermostat)o-ring (9.5x1.9) (panasonic)bolt, stud (10x60)bolt, stud (10x100)nut, flange (10mm)nut, flange (10mm)bolt, flange (6x12)bolt, flange (6x20)bolt, flange (6x25)bolt, flange (6x25)bolt, flange (6x30)bolt, flange (6x65)bolt, flange (6x80)bolt, flange (10x105)bolt, flange (10x105)
