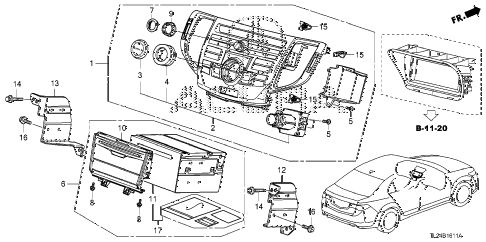

2009 TSX(TECH) 4 DOOR 5AT AUDIO UNIT (NAVIGATION) diagram
Back to Top
panel assy., navigation & audio switch *nh525l*switch assy., progressive commanderknob assy., multi jogknob assy., multi jog dialscrew (3x8)screw (3x8)tuner assy., radio (matsushita)knob (volume)screw (2.6x6)screw (2.6x6)rubber, volumepanel assy., fr.chassis assy. (matsushita)bracket, r. radiobracket, l. radiobolt-washer (5x19)bolt-washer (5x19)clip, snap fitting (po)(orange)clip, snap fitting (po)(orange)clip, snap fitting (po)(orange)tuner, in-dash (am/fm/6cd) (1xa4) (rmd)tuner, in-dash (am/fm/6cd) (1xa4) (rmd)tuner, in-dash (am/fm/6cd) (1xa4) (rmd)tuner, in-dash (am/fm/6cd) (1xa4) (rmd)bolt, flange (5x7)bolt, flange (5x7)
