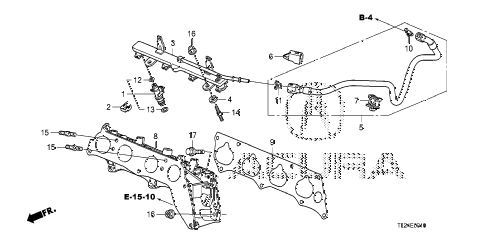

2009 TSX(TECH) 4 DOOR 5AT FUEL INJECTOR diagram
Back to Top
injector assy., fuelclip, injectorpipe, fuelinsulator, fuel pipehose, fuel feedholder b, fuel connector (light gray)clamp, fuel hose (black)base, injectorgasket, injector baseretainer (green) (tokai)retainer (blue green) (tokai)o-ring (7.47x3.6)o-ring (11.33x2.8) (brown)bolt, stud (8x22)bolt, stud (8x32)bolt, stud (8x32)nut, flange (8mm)nut, flange (8mm)bolt, flange (8x28)
