EXHAUST PIPE - MUFFLER
View large diagramHide diagramView diagramView printable catalogTranslate

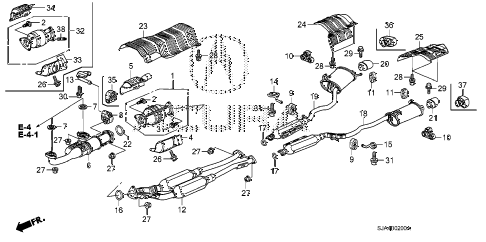

2010 RL 4 DOOR 5AT EXHAUST PIPE - MUFFLER diagram

  • 002

    bolt, converter

    Part Number: 18176-PT0-003

    ''


    KA - US - 49 State Spec

    • $13.38

  • 006

    pipe a, ex.

    Part Number: 18210-SJA-A04

    ''


    KA - US - 49 State Spec

    • $550.02

  • 007

    gasket, ex. pipe (ishino)

    Part Number: 18212-SA7-003

    ''


    KA - US - 49 State Spec

    • $7.17

  • 009

    rubber, ex. mounting

    Part Number: 18215-S84-A20

    ''


    KA - US - 49 State Spec

    • $4.77

  • 010

    rubber, ex. mounting

    Part Number: 18215-SJA-A11

    ''


    KA - US - 49 State Spec

    • $7.37

  • 011

    rubber, ex. mounting

    Part Number: 18215-SJA-A01

    ''


    KA - US - 49 State Spec

    • $7.37

  • 012

    pipe b, ex.

    Part Number: 18220-SJA-A04

    ''


    KA - US - 49 State Spec

    • $249.07

  • 013

    bracket, ex. mounting

    Part Number: 18282-SJA-A50

    ''


    KA - US - 49 State Spec

    • $9.62

  • 014

    bracket, r. ex. mounting

    Part Number: 18282-SJA-A11

    ''


    KA - US - 49 State Spec

    • $10.08

  • 015

    bracket, l. ex. mounting

    Part Number: 18282-SJA-A21

    ''


    KA - US - 49 State Spec

    • $11.55

  • 016

    gasket, pre chamber

    Part Number: 18393-SJA-A01

    ''


    KA - US - 49 State Spec

    • $8.87

  • 017

    gasket, muffler

    Part Number: 18303-SM4-020

    ''


    KA - US - 49 State Spec

    • $10.53

  • 018

    muffler, ex. (l)

    Part Number: 18305-SJA-A07

    ''


    KA - US - 49 State Spec

    • $517.85

  • 019

    muffler, ex. (r)

    Part Number: 18307-SJA-A07

    ''


    KA - US - 49 State Spec

    • $517.85

  • 022

    gasket, pre chamber

    Part Number: 18393-SDB-A00

    ''


    KA - US - 49 State Spec

    • $9.65

  • 023

    plate, floor heat baffle

    Part Number: 74601-SJA-E00

    ''


    KA - US - 49 State Spec

    • $93.27

  • 024

    plate, r. muffler baffle

    Part Number: 74654-SJA-A00

    ''


    KA - US - 49 State Spec

    • $20.27

  • 025

    plate, l. muffler baffle

    Part Number: 74694-SJA-A00

    ''


    KA - US - 49 State Spec

    • $19.42

  • 026

    bolt, flange (6x10) (iwata bolt)

    Part Number: 90023-PK1-000

    ''


    KA - US - 49 State Spec

    • $5.95

  • 026

    bolt, flange (6x12) (iwata bolt)

    Part Number: 90023-PR7-A01

    ''


    KA - US - 49 State Spec

    • $5.95

  • 027

    nut, self-lock (10mm)

    Part Number: 90212-SA5-003

    ''


    KA - US - 49 State Spec

    • $0.60

  • 028

    bolt-washer (6x14)

    Part Number: 93404-06014-05

    ''


    KA - US - 49 State Spec

    • $0.92

  • 029

    bolt, flange (6x10)

    Part Number: 95701-06010-08

    ''


    KA - US - 49 State Spec

    • $0.90

  • 030

    bolt, flange (8x16)

    Part Number: 95701-08016-05

    ''


    KA - US - 49 State Spec

    • $1.02

  • 031

    bolt, flange (10x16)

    Part Number: 95701-10016-05

    ''


    KA - US - 49 State Spec

    • $1.57

  • 032

    converter

    Part Number: 18160-RKG-A00

    ''


    KA - US - 49 State Spec

    • $927.65

  • 033

    cover (lower)

    Part Number: 18181-RKG-A00

    ''


    KA - US - 49 State Spec

    • $46.15

  • 034

    cover (upper)

    Part Number: 18182-RKG-A00

    ''


    KA - US - 49 State Spec

    • $46.15

  • 035

    rubber, ex. mounting

    Part Number: 18215-SJA-A51

    ''


    KA - US - 49 State Spec

    • $8.62

  • 036

    finisher, r. ex. pipe (c00)

    Part Number: 18310-SJA-315

    ''


    KA - US - 49 State Spec

    • $120.30

  • 037

    finisher, l. ex. pipe (c00)

    Part Number: 18320-SJA-315

    ''


    KA - US - 49 State Spec

    • $120.30

  • 038

    bolt, stud (10x24)

    Part Number: 90065-PG6-000

    ''


    KA - US - 49 State Spec

    • $5.22
