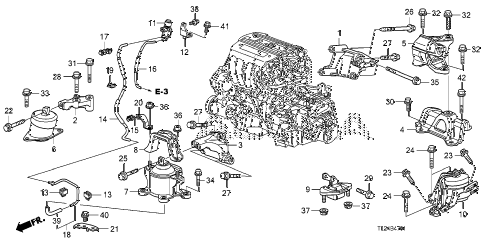

2010 TSX 4 DOOR 5AT ENGINE MOUNTS (AT) diagram
  • 001

    bracket, rr. engine mounting

    • Part Number: 50610-TA0-A00

    '


    KA - US - 49 State Spec

    • $61.72

  • 002

    bracket, engine side mounting

    • Part Number: 50620-TA0-A00

    '


    KA - US - 49 State Spec

    • $22.71

  • 003

    bracket, fr. engine mounting

    • Part Number: 50630-TA0-A00

    '


    KA - US - 49 State Spec

    • $40.99

  • 004

    bracket, engine mounting base (upper)

    • Part Number: 50685-TA0-A00

    '


    KA - US - 49 State Spec

    • $19.32

  • 005

    rubber assy., rr. engine mounting

    • Part Number: 50810-TA0-A02

    '


    KA - US - 49 State Spec

    • $62.47

  • 006

    rubber assy., engine side mounting

    • Part Number: 50820-TA0-A01

    '


    KA - US - 49 State Spec

    • $98.93

  • 007

    rubber assy., fr. engine mounting

    • Part Number: 50830-TA0-A02

    '


    KA - US - 49 State Spec

    • $136.05

  • 008

    stopper, fr. engine mount

    • Part Number: 50835-TA0-A02

    '


    KA - US - 49 State Spec

    • $17.18

  • 009

    rubber, transmission mounting insulator (lower)

    • Part Number: 50850-TA0-A02

    '


    KA - US - 49 State Spec

    • $29.50

  • 010

    rubber assy., transmission mounting (upper)

    • Part Number: 50870-TA0-A03

    '


    KA - US - 49 State Spec

    • $171.68

  • 011

    valve assy., electronic control mounting solenoid

    • Part Number: 50931-SDA-A01

    '


    KA - US - 49 State Spec

    • $15.12

  • 012

    stay, electronic control mountsolenoid valve

    • Part Number: 50932-TA0-A01

    '


    KA - US - 49 State Spec

    • $7.93

  • 013

    clip, accumulator pipe

    • Part Number: 50933-SZ3-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 014

    tube a, electronic control mount solenoid

    • Part Number: 50933-TL2-E00

    '


    KA - US - 49 State Spec

    • $17.83

  • 015

    clip, accumulator tube

    • Part Number: 50934-SW5-A80

    '


    KA - US - 49 State Spec

    • $3.25

  • 016

    tube b, electronic control mount solenoid

    • Part Number: 50934-TA0-A01

    '


    KA - US - 49 State Spec

    • $5.17

  • 017

    clamp, electronic control mount solenoid

    • Part Number: 50935-TA0-A01

    '


    KA - US - 49 State Spec

    • $5.23

  • 018

    pipe assy., electronic controlmount solenoid

    • Part Number: 50941-TL2-E00

    '


    KA - US - 49 State Spec

    • $8.90

  • 019

    clamp, electronic control mount solenoid

    • Part Number: 50944-TA0-A01

    '


    KA - US - 49 State Spec

    • $5.20

  • 020

    stay d, electronic control mount solenoid

    • Part Number: 50946-TL2-E00

    '


    KA - US - 49 State Spec

    • $3.25

  • 021

    stay c, electronic control mount pipe

    • Part Number: 50949-TA0-A00

    '


    KA - US - 49 State Spec

    • $7.22

  • 022

    bolt, flange (12x45)

    • Part Number: 90161-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.75

  • 023

    bolt, flange (10x25)

    • Part Number: 90161-TA0-A01

    '


    KA - US - 49 State Spec

    • $1.02

  • 024

    bolt, flange (12x50)

    • Part Number: 90162-TA0-A00

    '


    KA - US - 49 State Spec

    • $2.27

  • 025

    bolt, flange (10x35)

    • Part Number: 90163-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.12

  • 026

    bolt, flange (12x100)

    • Part Number: 90164-SAA-000

    '


    KA - US - 49 State Spec

    • $5.52

  • 027

    bolt, flange (12x40)

    • Part Number: 90164-S5A-010

    '


    KA - US - 49 State Spec

    • $2.75

  • 028

    bolt, flange (12x45)

    • Part Number: 90165-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.35

  • 029

    bolt, flange (10x25)

    • Part Number: 90167-SAA-010

    '


    KA - US - 49 State Spec

    • $2.78

  • 030

    bolt, flange (12x35)

    • Part Number: 90168-S5A-000

    '


    KA - US - 49 State Spec

    • $1.30

  • 031

    bolt, flange (12x65)

    • Part Number: 90168-TA0-A00

    '


    KA - US - 49 State Spec

    • $2.23

  • 032

    bolt, flange (10x40)

    • Part Number: 90169-TA0-A00

    '


    KA - US - 49 State Spec

    • $1.20

  • 033

    bolt, flange (12x30)

    • Part Number: 90176-SKN-000

    '


    KA - US - 49 State Spec

    • $2.68

  • 034

    bolt, flange (10x30)

    • Part Number: 90176-S5A-000

    '


    KA - US - 49 State Spec

    • $2.55

  • 035

    bolt, flange (12x139)

    • Part Number: 90176-TA0-A01

    '


    KA - US - 49 State Spec

    • $3.53

  • 036

    nut, flange (12mm)

    • Part Number: 90371-SEF-000

    '


    KA - US - 49 State Spec

    • $0.67

  • 037

    nut, flange (10mm)

    • Part Number: 90371-S87-A00

    '


    KA - US - 49 State Spec

    • $1.47

  • 038

    screw-washer (5x10)

    • Part Number: 93892-05010-07

    '


    KA - US - 49 State Spec

    • $0.68

  • 039

    bulk hose, vacuum (3.5x8000)

    • Part Number: 95005-35008-10M

    '


    KA - US - 49 State Spec

    • $52.80

  • 040

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00

  • 041

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 042

    bolt, flange (12x65)

    • Part Number: 95701-12065-08

    '


    KA - US - 49 State Spec

    • $2.40
