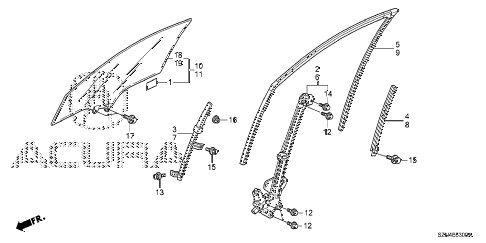

2010 ZDX BASE 5 DOOR 6AT FRONT DOOR WINDOWS  - REGULATOR diagram
Back to Top
label, immobilizer & securityregulator assy., r. fr. door powersash, r. fr. door (lower) (fr)sash, r. fr. door center (lower)channel, r. fr. door runregulator assy., l. fr. door powersash, l. fr. door (lower) (fr)sash, l. fr. door center (lower)channel, l. fr. door runglass assy., r. fr. door (green)(pgw)glass assy., l. fr. door (green)(pgw)bolt, flange (6x10)bolt, flange (6x10)bolt, flange (6x10)bolt-washer (6x16)bolt, flange (6x12)bolt-washer (6x16)bolt-washer (6x16)nut, flange (6mm)bolt, flange (6x16)
