FRONT SEAT COMPONENTS (R.) (2)
View large diagramHide diagramView diagramView printable catalogTranslate

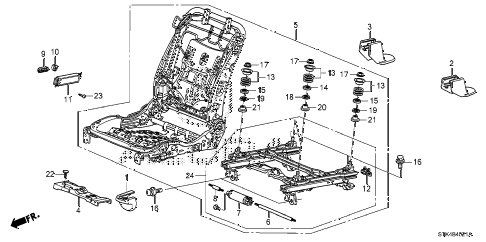

2011 RDX TECH 5 DOOR 5AT FRONT SEAT COMPONENTS (R.) (2) diagram

  • 001

    cover, r. fr. seat foot *nh557l*

    Part Number: 81104-STK-A11ZB
    (MEDIUM GRAY)

    ''


    KA - US - 49 State Spec

    • $112.70

  • 001

    cover, r. fr. seat foot *nh690l*

    Part Number: 81104-STK-A11ZC
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $112.70

  • 002

    cover, r. fr. seat foot (inner) *nh557l* (rr)

    Part Number: 81106-STK-A11ZB
    (MEDIUM GRAY)

    ''


    KA - US - 49 State Spec

    • $160.67

  • 002

    cover, r. fr. seat foot (inner) *nh690l* (rr)

    Part Number: 81106-STK-A11ZC
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $160.67

  • 003

    cover, r. fr. seat foot (outer) *nh557l* (rr)

    Part Number: 81107-STK-A11ZB
    (MEDIUM GRAY)

    ''


    KA - US - 49 State Spec

    • $120.88

  • 003

    cover, r. fr. seat foot (outer) *nh690l* (rr)

    Part Number: 81107-STK-A11ZC
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $120.88

  • 004

    cover, r. member *nh556l*

    Part Number: 81116-STK-A11ZB
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $12.75

  • 004

    cover, r. member *nh690l*

    Part Number: 81116-STK-A11ZE
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $12.75

  • 005

    frame, r. fr. seat-back

    Part Number: 81126-STK-A11

    ''


    KA - US - 49 State Spec

    • $1,409.28

  • 006

    cable assy.

    Part Number: 81242-TA0-J81

    ''


    KA - US - 49 State Spec

    • $39.57

  • 007

    motor, slide

    Part Number: 81246-TA0-J81

    ''


    KA - US - 49 State Spec

    • $252.97

  • 008

    cable

    Part Number: 81249-TA0-J81

    ''


    KA - US - 49 State Spec

    • $17.88

  • 009

    knob *nh556l* (a)

    Part Number: 81251-SDB-A71ZG
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $27.03

  • 009

    knob *nh690l* (a)

    Part Number: 81251-SDB-A71ZQ
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $27.03

  • 010

    knob *nh556l* (b)

    Part Number: 81252-SDB-A71ZJ
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $111.92

  • 010

    knob *nh690l* (b)

    Part Number: 81252-SDB-A71ZW
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $111.92

  • 011

    switch assy., r. (4 way)

    Part Number: 81253-SDB-A71

    ''


    KA - US - 49 State Spec

    • $67.15

  • 012

    cap, slide adjuster end (upper)

    Part Number: 81262-SNA-A01

    ''


    KA - US - 49 State Spec

    • $6.83

  • 013

    spring, fr. seat sws

    Part Number: 81281-STK-A01

    ''


    KA - US - 49 State Spec

    • $16.33

  • 014

    spacer, sws (b)

    Part Number: 81282-STK-A01

    ''


    KA - US - 49 State Spec

    • $18.23

  • 015

    spacer, sws (a)

    Part Number: 81283-STK-A01

    ''


    KA - US - 49 State Spec

    • $17.95

  • 016

    bolt-washer (10x25)

    Part Number: 90135-S7A-J51

    ''


    KA - US - 49 State Spec

    • $3.78

  • 017

    nut, torx (m10)

    Part Number: 90351-SNA-A01

    ''


    KA - US - 49 State Spec

    • $3.32

  • 018

    bush, sws (b)(natural)

    Part Number: 91052-SNA-A01

    ''


    KA - US - 49 State Spec

    • $3.02

  • 019

    bush, sws (a)(black)

    Part Number: 91053-SNA-A01

    ''


    KA - US - 49 State Spec

    • $2.83

  • 020

    collar, sws (b)

    Part Number: 91152-STK-A01

    ''


    KA - US - 49 State Spec

    • $30.57

  • 021

    collar, sws (a)

    Part Number: 91153-STK-A01

    ''


    KA - US - 49 State Spec

    • $5.62

  • 022

    clip, rr. roof rail *nh167l*

    Part Number: 91504-SR2-000ZM
    (GRAPHITE BLACK)

    ''


    KA - US - 49 State Spec

    • $6.03

  • 023

    screw, tapping (4x10)

    Part Number: 93903-14220

    ''


    KA - US - 49 State Spec

    • $0.65

  • 024

    adjuster, r. power seat

    Part Number: 04802-STK-A11

    ''


    KA - US - 49 State Spec

    • $1,171.27
