SPEAKER
View large diagramHide diagramView diagramView printable catalogTranslate

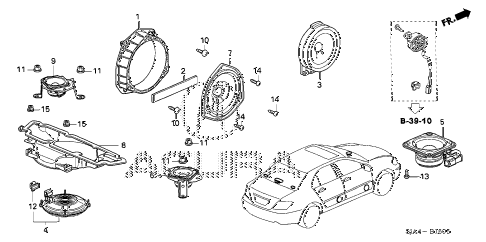

2011 RL 4 DOOR 6AT SPEAKER diagram

  • 001

    bracket, door speaker seal

    Part Number: 39112-SHJ-A00

    ''


    KA - US - 49 State Spec

    • $113.25

  • 002

    seal assy., seal bracket

    Part Number: 39113-SJA-A00

    ''


    KA - US - 49 State Spec

    • $4.32

  • 003

    speaker assy., door (17cm) (bose)

    Part Number: 39120-SJA-A02

    ''


    KA - US - 49 State Spec

    • $71.93

  • 004

    speaker assy., woofer (23cm) (bose)

    Part Number: 39120-SJA-A51

    ''


    KA - US - 49 State Spec

    • $347.03

  • 005

    speaker assy. a, twiddler (60mm) (bose)

    Part Number: 39120-SJA-A61

    ''


    KA - US - 49 State Spec

    • $84.18

  • 006

    speaker assy. b, r. twiddler (bose)

    Part Number: 39120-SJA-A81

    ''


    KA - US - 49 State Spec

    • $84.18

  • 007

    speaker assy. (17cm) (single) (bose)

    Part Number: 39120-S3V-A91

    ''


    KA - US - 49 State Spec

    • $73.78

  • 008

    duct assy., woofer (bose)

    Part Number: 39121-SJA-A51

    ''


    KA - US - 49 State Spec

    • $71.63

  • 009

    speaker assy. b, l. twiddler (bose)

    Part Number: 39125-SJA-A81

    ''


    KA - US - 49 State Spec

    • $84.18

  • 010

    screw, tapping (5x16)

    Part Number: 90102-SA7-003

    ''


    KA - US - 49 State Spec

    • $2.83

  • 011

    nut, paint cutting (6mm)

    Part Number: 90361-SV4-003

    ''


    KA - US - 49 State Spec

    • $1.73

  • 012

    clip, connector (natural)

    Part Number: 91533-S04-003

    ''


    KA - US - 49 State Spec

    • $2.33

  • 013

    screw, tapping (4x12) (po)

    Part Number: 93913-14280

    ''


    KA - US - 49 State Spec

    • $0.57

  • 014

    screw, tapping (4x16) (po)

    Part Number: 93913-14420

    ''


    KA - US - 49 State Spec

    • $0.57

  • 015

    nut, flange (5mm)

    Part Number: 94050-05080

    ''


    KA - US - 49 State Spec

    • $0.17

Back to Top
bracket, door speaker sealseal assy., seal bracketspeaker assy., door (17cm) (bose)speaker assy., woofer (23cm) (bose)speaker assy. a, twiddler (60mm) (bose)speaker assy. b, r. twiddler (bose)speaker assy. (17cm) (single) (bose)duct assy., woofer (bose)speaker assy. b, l. twiddler (bose)screw, tapping (5x16)screw, tapping (5x16)nut, paint cutting (6mm)nut, paint cutting (6mm)nut, paint cutting (6mm)nut, paint cutting (6mm)clip, connector (natural)screw, tapping (4x12) (po)screw, tapping (4x16) (po)screw, tapping (4x16) (po)screw, tapping (4x16) (po)nut, flange (5mm)nut, flange (5mm)
