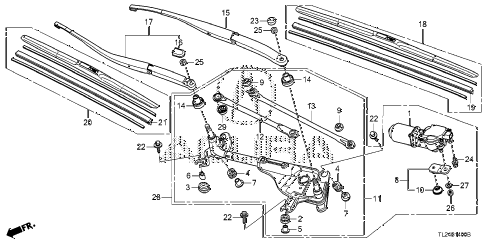

FRONT WINDSHIELD WIPER - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: motor, fr. wiper Part Number: 76505-TA0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $97.68

Ref #: 002	Honda Part: rubber, mounting Part Number: 76516-SDA-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $2.67

Ref #: 003	Honda Part: rubber, mounting Part Number: 76516-SJK-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.92

Ref #: 004	Honda Part: rubber, mounting Part Number: 76516-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.58

Ref #: 005	Honda Part: collar, bracketless Part Number: 76517-SE0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.50

Ref #: 006	Honda Part: collar Part Number: 76517-SJK-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.72

Ref #: 007	Honda Part: collar Part Number: 76517-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.05

Ref #: 008	Honda Part: link assy. (a) Part Number: 76520-TA0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $3.65

Ref #: 009	Honda Part: dust seal Part Number: 76524-SD4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $4.07

Ref #: 010	Honda Part: dust seal Part Number: 76524-SL0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.12

Ref #: 011	Honda Part: link, fr. wiper Part Number: 76530-TL0-G02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $226.23

Ref #: 012	Honda Part: rod unit a Part Number: 76540-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $15.08

Ref #: 013	Honda Part: rod unit b Part Number: 76550-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $18.88

Ref #: 014	Honda Part: cap, pivot Part Number: 76561-SEA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.72

Ref #: 015	Honda Part: arm, windshield wiper (driver side) Part Number: 76600-TL2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $71.52

Ref #: 016	Honda Part: cover, arm Part Number: 76602-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.03

Ref #: 017	Honda Part: arm, windshield wiper (passenger side) Part Number: 76610-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $71.52

Ref #: 018	Honda Part: blade, windshield wiper (600mm) (driver side) Part Number: 76620-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $25.70

Ref #: 019	Honda Part: rubber, blade (600mm) Part Number: 76622-SLN-A12 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $6.15

Ref #: 020	Honda Part: blade, windshield wiper (550mm) (passenger side) Part Number: 76630-TL0-G02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $25.23

Ref #: 021	Honda Part: rubber, blade (550mm) Part Number: 76632-SHJ-A11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $5.63

Ref #: 022	Honda Part: bolt-washer (6x32) Part Number: 90126-SR3-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.85

Ref #: 023	Honda Part: cap, fr. wiper arm (12mm) Part Number: 91611-SDA-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.82

Ref #: 024	Honda Part: bolt-washer (6x14) Part Number: 93402-06014-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 025	Honda Part: nut, hex. (12mm) Part Number: 94001-12080-0S Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.77

Ref #: 026	Honda Part: nut, hex. (10mm) Part Number: 94031-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.75

Ref #: 027	Honda Part: washer, spring (10mm) Part Number: 94111-10800 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $0.63

Ref #: 029	Honda Part: dust seal Part Number: 76524-SL0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	Retail price: $8.12

Ref #: 001	Honda Part: motor, fr. wiper Part Number: 76505-TA0-A02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$97.68

Ref #: 002	Honda Part: rubber, mounting Part Number: 76516-SDA-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$2.67

Ref #: 003	Honda Part: rubber, mounting Part Number: 76516-SJK-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.92

Ref #: 004	Honda Part: rubber, mounting Part Number: 76516-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.58

Ref #: 005	Honda Part: collar, bracketless Part Number: 76517-SE0-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.50

Ref #: 006	Honda Part: collar Part Number: 76517-SJK-003 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.72

Ref #: 007	Honda Part: collar Part Number: 76517-SM4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.05

Ref #: 008	Honda Part: link assy. (a) Part Number: 76520-TA0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$3.65

Ref #: 009	Honda Part: dust seal Part Number: 76524-SD4-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$4.07

Ref #: 010	Honda Part: dust seal Part Number: 76524-SL0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.12

Ref #: 011	Honda Part: link, fr. wiper Part Number: 76530-TL0-G02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$226.23

Ref #: 012	Honda Part: rod unit a Part Number: 76540-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$15.08

Ref #: 013	Honda Part: rod unit b Part Number: 76550-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$18.88

Ref #: 014	Honda Part: cap, pivot Part Number: 76561-SEA-003 Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.72

Ref #: 015	Honda Part: arm, windshield wiper (driver side) Part Number: 76600-TL2-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$71.52

Ref #: 016	Honda Part: cover, arm Part Number: 76602-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.03

Ref #: 017	Honda Part: arm, windshield wiper (passenger side) Part Number: 76610-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$71.52

Ref #: 018	Honda Part: blade, windshield wiper (600mm) (driver side) Part Number: 76620-TL0-G01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$25.70

Ref #: 019	Honda Part: rubber, blade (600mm) Part Number: 76622-SLN-A12 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$6.15

Ref #: 020	Honda Part: blade, windshield wiper (550mm) (passenger side) Part Number: 76630-TL0-G02 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$25.23

Ref #: 021	Honda Part: rubber, blade (550mm) Part Number: 76632-SHJ-A11 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$5.63

Ref #: 022	Honda Part: bolt-washer (6x32) Part Number: 90126-SR3-000 Standard Qty.: 004 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.85

Ref #: 023	Honda Part: cap, fr. wiper arm (12mm) Part Number: 91611-SDA-A00 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.82

Ref #: 024	Honda Part: bolt-washer (6x14) Part Number: 93402-06014-08 Standard Qty.: 003 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 025	Honda Part: nut, hex. (12mm) Part Number: 94001-12080-0S Standard Qty.: 002 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.77

Ref #: 026	Honda Part: nut, hex. (10mm) Part Number: 94031-10080 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.75

Ref #: 027	Honda Part: washer, spring (10mm) Part Number: 94111-10800 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$0.63

Ref #: 029	Honda Part: dust seal Part Number: 76524-SL0-A01 Standard Qty.: 001 Mfg. Origin: 'JPN' Emission Types: KA - US - 49 State Spec	$8.12
