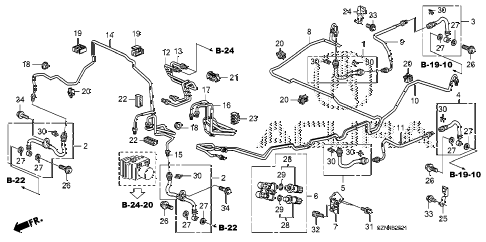

2011 ZDX ADV 5 DOOR 6AT BRAKE LINES (VSA) (2) diagram
  • 001

    hose set, r. rr. brake (a)

    • Part Number: 01460-STX-A01

    '


    KA - US - 49 State Spec

    • $13.73

  • 002

    hose set, fr. brake

    • Part Number: 01464-STX-A00

    '


    KA - US - 49 State Spec

    • $21.97

  • 002

    hose set, fr. brake

    • Part Number: 01464-STX-A01

    '


    KA - US - 49 State Spec

    • $21.97

  • 003

    hose set, r. rr. brake (b)

    • Part Number: 01466-STX-A00

    '


    KA - US - 49 State Spec

    • $44.48

  • 004

    hose set, l. rr. brake (b)

    • Part Number: 01468-STX-A00

    '


    KA - US - 49 State Spec

    • $44.48

  • 005

    hose set, l. rr. brake (a)

    • Part Number: 01470-STX-A01

    '


    KA - US - 49 State Spec

    • $13.73

  • 006

    sensor unit, pressure

    • Part Number: 46205-STX-A01

    '


    KA - US - 49 State Spec

    • $225.20

  • 007

    bracket, pressure sensor

    • Part Number: 46215-STX-A10

    '


    KA - US - 49 State Spec

    • $1.82

  • 008

    pipe c, brake

    • Part Number: 46330-SZN-A51

    '


    KA - US - 49 State Spec

    • $22.58

  • 009

    pipe e, r. brake

    • Part Number: 46331-STX-A03

    '


    KA - US - 49 State Spec

    • $25.35

  • 010

    pipe d, brake

    • Part Number: 46340-SZN-A52

    '


    KA - US - 49 State Spec

    • $18.50

  • 011

    pipe e, l. brake

    • Part Number: 46361-STX-A03

    '


    KA - US - 49 State Spec

    • $25.35

  • 012

    pipe u, brake

    • Part Number: 46374-STX-A04

    '


    KA - US - 49 State Spec

    • $7.25

  • 013

    pipe v, brake

    • Part Number: 46375-STX-A02

    '


    KA - US - 49 State Spec

    • $6.82

  • 014

    pipe w, brake

    • Part Number: 46376-STX-A12

    '


    KA - US - 49 State Spec

    • $15.57

  • 015

    pipe x, brake

    • Part Number: 46377-STX-A02

    '


    KA - US - 49 State Spec

    • $6.68

  • 016

    pipe y, brake

    • Part Number: 46378-STX-A11

    '


    KA - US - 49 State Spec

    • $8.58

  • 017

    pipe z, brake

    • Part Number: 46379-STX-A11

    '


    KA - US - 49 State Spec

    • $9.07

  • 018

    grommet a, brake pipe (black)

    • Part Number: 46380-SB0-000

    '


    KA - US - 49 State Spec

    • $4.13

  • 019

    clip, brake pipe

    • Part Number: 46391-SHJ-A01

    '


    KA - US - 49 State Spec

    • $0.85

  • 020

    clip, brake pipe

    • Part Number: 46391-STK-A01

    '


    KA - US - 49 State Spec

    • $1.40

  • 021

    clip, brake pipe

    • Part Number: 46392-STX-A02

    '


    KA - US - 49 State Spec

    • $3.53

  • 022

    clamp, brake pipe

    • Part Number: 46393-STX-A01

    '


    KA - US - 49 State Spec

    • $1.07

  • 023

    clip, brake pipe

    • Part Number: 46393-STX-A51

    '


    KA - US - 49 State Spec

    • $3.40

  • 024

    bracket, r. rr. brake hose

    • Part Number: 46435-STX-A00

    '


    KA - US - 49 State Spec

    • $2.45

  • 025

    bracket, l. rr. brake hose

    • Part Number: 46436-STX-A00

    '


    KA - US - 49 State Spec

    • $2.45

  • 026

    bolt, oil

    • Part Number: 46462-SE0-000

    '


    KA - US - 49 State Spec

    • $5.52

  • 027

    gasket, oil bolt

    • Part Number: 46472-568-000

    '


    KA - US - 49 State Spec

    • $3.15

  • 028

    sensor, pressure

    • Part Number: 57620-S10-305

    '


    KA - US - 49 State Spec

    • $158.83

  • 029

    o-ring

    • Part Number: 57621-S10-000

    '


    KA - US - 49 State Spec

    • $2.27

  • 030

    clip, brake hose

    • Part Number: 90651-SV1-A01

    '


    KA - US - 49 State Spec

    • $1.38

  • 031

    bolt-washer (6x12)

    • Part Number: 93401-06012-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 032

    bolt-washer (6x14)

    • Part Number: 93401-06014-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 033

    bolt-washer (8x12)

    • Part Number: 93402-08012-05

    '


    KA - US - 49 State Spec

    • $1.02

  • 034

    bolt, flange (8x20)

    • Part Number: 95701-08020-08

    '


    KA - US - 49 State Spec

    • $0.88
