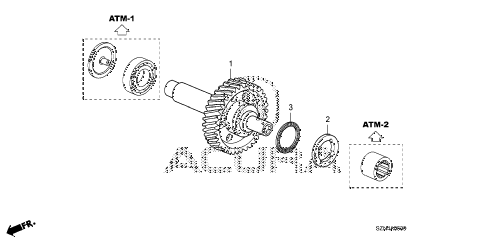

2011 ZDX BASE 5 DOOR 6AT AT IDLE SHAFT diagram
  • 001

    shaft, idle

    • Part Number: 23250-RT4-000

    '


    KA - US - 49 State Spec

    • $188.97

  • 002

    washer a (41.5mm) (1.26)

    • Part Number: 90480-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer b (41.5mm) (1.30)

    • Part Number: 90481-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer c (41.5mm) (1.34)

    • Part Number: 90482-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer d (41.5mm) (1.38)

    • Part Number: 90483-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer e (41.5mm) (1.42)

    • Part Number: 90484-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer f (41.5mm) (1.46)

    • Part Number: 90485-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer g (41.5mm) (1.50)

    • Part Number: 90486-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer h (41.5mm) (1.54)

    • Part Number: 90487-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer i (41.5mm) (1.58)

    • Part Number: 90488-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer j (41.5mm) (1.62)

    • Part Number: 90489-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer k (41.5mm) (1.66)

    • Part Number: 90490-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer l (41.5mm) (1.70)

    • Part Number: 90491-RT4-000

    '


    KA - US - 49 State Spec

    • $8.18

  • 002

    washer m (41.5mm) (1.74)

    • Part Number: 90492-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer n (41.5mm) (1.78)

    • Part Number: 90493-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer o (41.5mm) (1.82)

    • Part Number: 90494-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer p (41.5mm) (1.86)

    • Part Number: 90495-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer q (41.5mm) (1.90)

    • Part Number: 90496-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer r (41.5mm) (1.94)

    • Part Number: 90497-RT4-000

    '


    KA - US - 49 State Spec

    • $8.18

  • 002

    washer s (41.5mm) (1.98)

    • Part Number: 90498-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer t (41.5mm) (2.02)

    • Part Number: 90499-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 002

    washer u (41.5mm) (2.06)

    • Part Number: 90500-RT4-000

    '


    KA - US - 49 State Spec

    • $9.25

  • 003

    bearing, thrust needle (27.5x41x2.5)

    • Part Number: 91030-RT4-005

    '


    KA - US - 49 State Spec

    • $10.37
