P.S. GEAR BOX (1)
View large diagramHide diagramView diagramView printable catalogTranslate

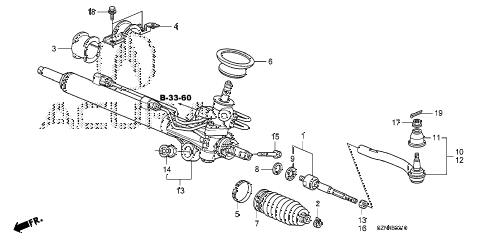

2011 ZDX BASE 5 DOOR 6AT P.S. GEAR BOX (1) diagram

  • 001

    joint set, ball (inner)

    Part Number: 53010-SZN-A51

    ''


    KA - US - 49 State Spec

    • $110.37

  • 002

    clip

    Part Number: 53434-S87-A01

    ''


    KA - US - 49 State Spec

    • $3.82

  • 003

    rubber, mounting

    Part Number: 53436-SZN-A01

    ''


    KA - US - 49 State Spec

    • $11.57

  • 004

    bracket b, power steering rack

    Part Number: 53438-SZA-A00

    ''


    KA - US - 49 State Spec

    • $27.35

  • 005

    clamp, bellows

    Part Number: 53449-S0X-A01

    ''


    KA - US - 49 State Spec

    • $5.02

  • 006

    grommet, steering

    Part Number: 53501-SZA-A00

    ''


    KA - US - 49 State Spec

    • $12.33

  • 007

    bellows

    Part Number: 53534-S0X-A02

    ''


    KA - US - 49 State Spec

    • $8.92

  • 008

    spacer

    Part Number: 53535-S0X-A01

    ''


    KA - US - 49 State Spec

    • $12.07

  • 009

    washer, tab

    Part Number: 53536-S0X-A01

    ''


    KA - US - 49 State Spec

    • $4.47

  • 010

    end, r. tie rod

    Part Number: 53540-STX-A02

    ''


    KA - US - 49 State Spec

    • $50.92

  • 011

    boot, tie rod end

    Part Number: 53546-STX-A02

    ''


    KA - US - 49 State Spec

    • $5.25

  • 012

    end, l. tie rod

    Part Number: 53560-STX-A02

    ''


    KA - US - 49 State Spec

    • $50.92

  • 013

    rack, power steering

    Part Number: 53601-SZN-A51

    ''


    KA - US - 49 State Spec

    • $1,278.02

  • 014

    bush, mounting

    Part Number: 53685-SHJ-A02

    ''


    KA - US - 49 State Spec

    • $9.93

  • 015

    bolt, flange (12x51)

    Part Number: 90107-STX-A50

    ''


    KA - US - 49 State Spec

    • $8.93

  • 016

    nut, hex. (24mm)

    Part Number: 90301-SDB-A01

    ''


    KA - US - 49 State Spec

    • $2.70

  • 017

    nut, flange (12mm)

    Part Number: 90362-SZA-A00

    ''


    KA - US - 49 State Spec

    • $0.68

  • 018

    bolt-washer (10x20)

    Part Number: 93402-10020-08

    ''


    KA - US - 49 State Spec

    • $1.58

  • 019

    pin, split (3.0x22)

    Part Number: 94201-30220

    ''


    KA - US - 49 State Spec

    • $0.20
