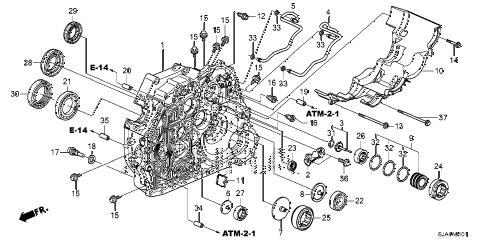

2012 RL-H 4 DOOR 6AT AT TORQUE CONVERTER CASE (6AT) diagram
Back to Top
case, torque converterplate, oil catchpipe assy., feedpipe a, jointpipe b, jointplate, oil guide (t)plate, oil guideplate, oil guide (i)collar assy., oil guideplate, bafflemagnet, transmissionbolt, air checkbolt, flange (6x95)bolt, flange (6x30)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, sealing (10mm)bolt, plug (18mm)washer, drain plug (18mm)pin, dowel (14x25)pin, dowel (14x20)pin, dowel (14x20)bearing, ball (41x70x9.7/8.5)bearing, ball (25x61x15)bearing, ball (15x32x8)bearing, needle (32x63x19)bearing, needle (40.5x74x23)bearing, needle (28.6x40.8x13)bearing, needle (32x44x14.5)oil seal (48x65x7.5) (nok)oil seal (37x56x8)oil seal (51x70x7.5)o-ring (16.7x1.9) (nok)o-ring (43x1.9) (nok)o-ring (43x1.9) (nok)o-ring (43x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)o-ring (7.7x1.9) (nok)pin, dowel (10x16)pin, dowel (10x20)bolt, flange (6x18)bolt, flange (6x100)
