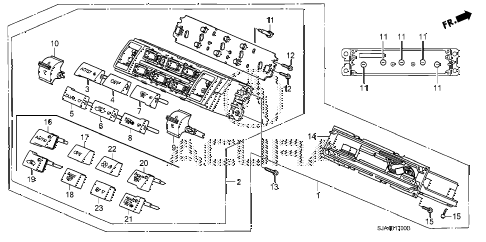

2012 RL-H 4 DOOR 6AT AUTO AIR CONDITIONER CONDITIONER CONTROL diagram
Back to Top
display assy., auto air conditioner *nh578l*knob assy. *nh578l* (r. temperature)knob assy. *nh578l* (l. temperature)screw, tapping (3x12)screw, tapping (3x12)screw, tapping (4x16) (po)amplifier assy., auto air conditionerscrew, tapping (3x10)screw, tapping (3x10)knob assy. *nh578l* (auto)knob assy. *nh578l* (off)knob assy. *nh578l* (mode)knob assy. *nh578l* (rec)knob assy. *nh578l* (fr. defogger)knob assy. *nh578l* (rr. defogger)knob assy. *nh578l* (fan up)knob assy. *nh578l* (fan down)
