AT TRANSMISSION CASE (6AT)
View large diagramHide diagramView diagramView printable catalogTranslate

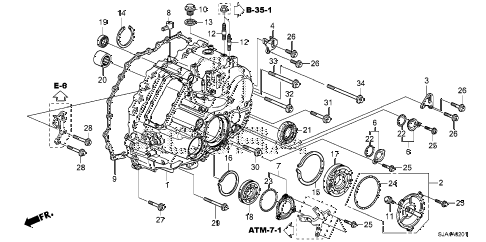

2012 RL-TEC 4 DOOR 6AT AT TRANSMISSION CASE (6AT) diagram

  • 001

    case, transmission

    Part Number: 21210-R8E-000

    ''


    KA - US - 49 State Spec

    • $657.63

  • 002

    cap assy. a, l. side

    Part Number: 21230-RT4-000

    ''


    KA - US - 49 State Spec

    • $75.02

  • 003

    hanger a, transmission

    Part Number: 21232-RT4-000

    ''


    KA - US - 49 State Spec

    • $6.62

  • 004

    hanger b, transmission

    Part Number: 21233-RT4-000

    ''


    KA - US - 49 State Spec

    • $10.80

  • 006

    cap assy. b, l. side

    Part Number: 21260-RT4-000

    ''


    KA - US - 49 State Spec

    • $33.88

  • 007

    cap assy. c, l. side

    Part Number: 21270-5B7-000

    ''


    KA - US - 49 State Spec

    • $37.43

  • 008

    cap, breather

    Part Number: 21396-P20-000

    ''


    KA - US - 49 State Spec

    • $4.37

  • 009

    gasket, torque converter case

    Part Number: 21811-RT4-000

    ''


    KA - US - 49 State Spec

    • $53.75

  • 010

    bolt, filler (atf)

    Part Number: 25614-PK4-000

    ''


    KA - US - 49 State Spec

    • $13.38

  • 011

    bolt, sealing (10mm)

    Part Number: 90030-RT4-003

    ''


    KA - US - 49 State Spec

    • $5.20

  • 012

    bolt, stud (6x28)

    Part Number: 90041-PA5-000

    ''


    KA - US - 49 State Spec

    • $2.67

  • 013

    washer, sealing (24mm)

    Part Number: 11107-PWA-300

    ''


    KA - US - 49 State Spec

    • $2.10

  • 013

    washer, sealing (24mm)

    Part Number: 90441-PK4-000

    ''


    KA - US - 49 State Spec

    • $4.83

  • 014

    shim a (89mm) (0.85)

    Part Number: 90460-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim b (89mm) (0.92)

    Part Number: 90461-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim c (89mm) (0.99)

    Part Number: 90462-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim d (89mm) (1.06)

    Part Number: 90463-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim e (89mm) (1.13)

    Part Number: 90464-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim f (89mm) (1.20)

    Part Number: 90465-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim g (89mm) (1.27)

    Part Number: 90466-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim h (89mm) (1.34)

    Part Number: 90467-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim i (89mm) (1.41)

    Part Number: 90468-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim j (89mm) (1.48)

    Part Number: 90469-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim k (89mm) (1.55)

    Part Number: 90470-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim l (89mm) (1.62)

    Part Number: 90471-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim m (89mm) (1.69)

    Part Number: 90472-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim n (89mm) (1.76)

    Part Number: 90473-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim o (89mm) (1.83)

    Part Number: 90474-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim p (89mm) (1.90)

    Part Number: 90475-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim q (89mm) (1.97)

    Part Number: 90476-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim r (89mm) (2.04)

    Part Number: 90477-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim s (89mm) (2.11)

    Part Number: 90478-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 014

    shim t (89mm) (2.18)

    Part Number: 90479-RT4-000

    ''


    KA - US - 49 State Spec

    • $11.35

  • 015

    ring, snap (100mm)

    Part Number: 90612-RT4-000

    ''


    KA - US - 49 State Spec

    • $4.48

  • 016

    ring, snap (72mm)

    Part Number: 90614-RT4-000

    ''


    KA - US - 49 State Spec

    • $4.02

  • 017

    bearing, ball (33x100x19.5/15)

    Part Number: 91002-RT4-006

    ''


    KA - US - 49 State Spec

    • $73.52

  • 018

    bearing, ball (27x72x19/17)

    Part Number: 91004-RT4-006

    ''


    KA - US - 49 State Spec

    • $38.82

  • 019

    bearing, ball (12x28x7)

    Part Number: 91010-RT4-004

    ''


    KA - US - 49 State Spec

    • $9.33

  • 020

    bearing, needle (23x40x31.5)

    Part Number: 91106-RT4-003

    ''


    KA - US - 49 State Spec

    • $37.67

  • 021

    oil seal (42x58x12.5)

    Part Number: 91205-RT4-003

    ''


    KA - US - 49 State Spec

    • $10.57

  • 022

    o-ring (28x2.2) (nok)

    Part Number: 91302-RDK-003

    ''


    KA - US - 49 State Spec

    • $2.65

  • 023

    o-ring (83x2.3)

    Part Number: 91317-RT4-003

    ''


    KA - US - 49 State Spec

    • $4.18

  • 024

    o-ring (116.7x2.2)

    Part Number: 91318-RT4-003

    ''


    KA - US - 49 State Spec

    • $4.85

  • 025

    bolt, flange (6x20)

    Part Number: 95701-06020-08

    ''


    KA - US - 49 State Spec

    • $0.23

  • 026

    bolt, flange (8x20)

    Part Number: 95701-08020-08

    ''


    KA - US - 49 State Spec

    • $0.92

  • 027

    bolt, flange (8x40)

    Part Number: 95701-08040-08

    ''


    KA - US - 49 State Spec

    • $1.33

  • 028

    bolt, flange (8x55)

    Part Number: 95701-08055-08

    ''


    KA - US - 49 State Spec

    • $1.42

  • 029

    bolt, flange (8x75)

    Part Number: 95701-08075-08

    ''


    KA - US - 49 State Spec

    • $1.62

  • 030

    bolt, flange (10x40)

    Part Number: 95701-10040-08

    ''


    KA - US - 49 State Spec

    • $1.35

  • 031

    bolt, flange (10x50)

    Part Number: 95701-10050-08

    ''


    KA - US - 49 State Spec

    • $1.57

  • 032

    bolt, flange (10x70)

    Part Number: 95701-10070-08

    ''


    KA - US - 49 State Spec

    • $1.87

  • 033

    bolt, flange (10x80)

    Part Number: 95701-10080-08

    ''


    KA - US - 49 State Spec

    • $1.87

  • 034

    bolt, flange (10x95)

    Part Number: 95701-10095-08

    ''


    KA - US - 49 State Spec

    • $2.50
