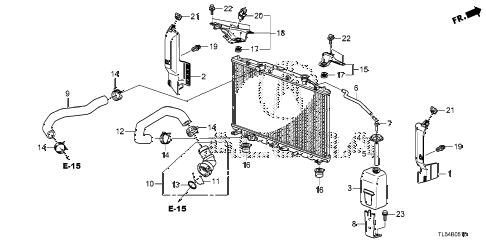

2012 TSX 5 DOOR 5AT RADIATOR HOSE - RESERVE TANK diagram
  • 001

    seal, r. radiator side

    • Part Number: 19025-RL2-G00

    '


    KA - US - 49 State Spec

    • $8.73

  • 002

    seal, l. radiator side

    • Part Number: 19026-RL2-G00

    '


    KA - US - 49 State Spec

    • $9.38

  • 003

    tank, reserve

    • Part Number: 19101-RL2-G00

    '


    KA - US - 49 State Spec

    • $42.93

  • 004

    cap, reserve tank

    • Part Number: 19102-PM5-A00

    '


    KA - US - 49 State Spec

    • $1.67

  • 005

    hose, reserve tank

    • Part Number: 19103-RL2-G00

    '


    KA - US - 49 State Spec

    • $3.35

  • 006

    tube, reserve tank

    • Part Number: 19104-RL2-G00

    '


    KA - US - 49 State Spec

    • $9.00

  • 007

    joint, reserve tank

    • Part Number: 19106-RSA-G00

    '


    KA - US - 49 State Spec

    • $0.65

  • 008

    bracket, reserve tank

    • Part Number: 19115-RL2-G00

    '


    KA - US - 49 State Spec

    • $7.32

  • 009

    hose, water (upper)

    • Part Number: 19501-RL5-A01

    '


    KA - US - 49 State Spec

    • $26.43

  • 010

    connector, quick water

    • Part Number: 19503-RAA-A01

    '


    KA - US - 49 State Spec

    • $38.28

  • 011

    wire

    • Part Number: 19506-RAA-A01

    '


    KA - US - 49 State Spec

    • $3.38

  • 012

    hose, water (lower)

    • Part Number: 19506-RL5-A01

    '


    KA - US - 49 State Spec

    • $29.37

  • 013

    o-ring

    • Part Number: 19507-RAA-A01

    '


    KA - US - 49 State Spec

    • $2.48

  • 014

    clip, hose (36.5mm) (chuo spring)

    • Part Number: 19511-PH7-003

    '


    KA - US - 49 State Spec

    • $6.38

  • 015

    bracket, r. radiator mounting (upper)

    • Part Number: 74171-TL1-G00

    '


    KA - US - 49 State Spec

    • $14.27

  • 016

    cushion, radiator mounting (lower)

    • Part Number: 74172-SDA-A00

    '


    KA - US - 49 State Spec

    • $3.45

  • 017

    cushion, radiator mounting (upper)

    • Part Number: 74173-SJ4-000

    '


    KA - US - 49 State Spec

    • $3.42

  • 018

    bracket, l. radiator mounting (upper)

    • Part Number: 74176-TL1-G00

    '


    KA - US - 49 State Spec

    • $17.62

  • 019

    clip a, bumper

    • Part Number: 91503-SZ3-003

    '


    KA - US - 49 State Spec

    • $3.58

  • 020

    holder, rod (black)

    • Part Number: 91503-TL0-003

    '


    KA - US - 49 State Spec

    • $3.13

  • 021

    clip, trunk spoiler

    • Part Number: 91512-SND-003

    '


    KA - US - 49 State Spec

    • $4.60

  • 022

    bolt-washer (6x16)

    • Part Number: 93405-06016-04

    '


    KA - US - 49 State Spec

    • $1.02

  • 023

    bolt, flange (6x16)

    • Part Number: 95701-06016-08

    '


    KA - US - 49 State Spec

    • $0.88
