FRONT SEAT COMPONENTS (L.)
View large diagramHide diagramView diagramView printable catalogTranslate

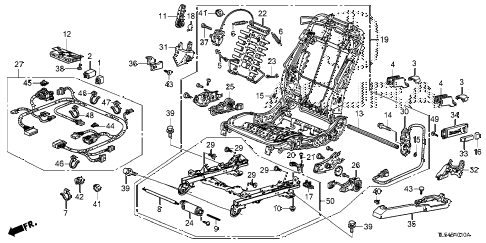

2012 TSX 5 DOOR 5AT FRONT SEAT COMPONENTS (L.) diagram

  • 001

    relay assy., power (micro iso)(mitsuba)

    Part Number: 39794-SDA-A05

    ''


    KA - US - 49 State Spec

    • $24.50

  • 002

    relay assy., power (5p) (micro iso)

    Part Number: 39794-SNB-E01

    ''


    KA - US - 49 State Spec

    • $30.42

  • 003

    cover, rr. foot *nh690l*

    Part Number: 81106-TA0-000ZE
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 004

    cover, fr. seat foot *nh690l* (rr)

    Part Number: 81107-TL0-G21ZB
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 005

    wire, r. fr. seat-back lumbar

    Part Number: 81190-TL0-G11

    ''


    KA - US - 49 State Spec

    • $4.68

  • 006

    spring, fr. seat-back lumbar

    Part Number: 81190-TL0-G21

    ''


    KA - US - 49 State Spec

    • $8.67

  • 007

    band a

    Part Number: 81199-TL0-003

    ''


    KA - US - 49 State Spec

    • $1.48

  • 008

    cable assy.

    Part Number: 81201-TL0-G21

    ''


    KA - US - 49 State Spec

    • $26.38

  • 009

    cable

    Part Number: 81202-TL0-G21

    ''


    KA - US - 49 State Spec

    • $14.30

  • 010

    nut, screw

    Part Number: 81203-TL0-G21

    ''


    KA - US - 49 State Spec

    • $2.98

  • 011

    knob, fr. lumbar support seat-back *nh690l*

    Part Number: 81211-SDA-A41ZL
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $244.00

  • 011

    knob, fr. lumbar support seat-back *nh556l*

    Part Number: 81211-SDA-A41ZM
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $244.00

  • 012

    m.s.c. unit

    Part Number: 81228-TL0-G01

    ''


    KA - US - 49 State Spec

    • $506.80

  • 013

    shaft

    Part Number: 81231-TL0-G21

    ''


    KA - US - 49 State Spec

    • $30.38

  • 014

    bolt, reclining motor

    Part Number: 81233-TL0-G21

    ''


    KA - US - 49 State Spec

    • $2.88

  • 015

    nut, push

    Part Number: 81236-SDG-H71

    ''


    KA - US - 49 State Spec

    • $1.57

  • 016

    knob *nh556l* (b)

    Part Number: 81252-SDB-A71ZJ
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $111.92

  • 016

    knob *nh690l* (b)

    Part Number: 81252-SDB-A71ZW
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $111.92

  • 017

    cap, slide adjuster end (upper)

    Part Number: 81262-SNA-A01

    ''


    KA - US - 49 State Spec

    • $6.83

  • 018

    clip, lumbar support

    Part Number: 81322-SP0-003

    ''


    KA - US - 49 State Spec

    • $4.12

  • 019

    frame, l. fr. seat-back

    Part Number: 81526-TL2-A02

    ''


    KA - US - 49 State Spec

    • $1,421.33

  • 020

    sensor, seat position

    Part Number: 81550-TL2-A01

    ''


    KA - US - 49 State Spec

    • $120.12

  • 021

    bolt, sps

    Part Number: 81554-TL2-A01

    ''


    KA - US - 49 State Spec

    • $5.02

  • 022

    lumbar, l. fr. seat-back

    Part Number: 81590-TL0-G01

    ''


    KA - US - 49 State Spec

    • $392.30

  • 023

    wire, l. fr. seat-back lumbar

    Part Number: 81590-TL0-G11

    ''


    KA - US - 49 State Spec

    • $4.68

  • 024

    motor, slide

    Part Number: 81603-TL0-E21

    ''


    KA - US - 49 State Spec

    • $287.48

  • 025

    motor assy., r. fr. height

    Part Number: 81604-TL0-G21

    ''


    KA - US - 49 State Spec

    • $287.48

  • 026

    motor assy., l. rr. height

    Part Number: 81605-TL0-G21

    ''


    KA - US - 49 State Spec

    • $287.48

  • 027

    cord, l. power seat sub (8way)

    Part Number: 81607-TL2-A01

    ''


    KA - US - 49 State Spec

    • $127.82

  • 029

    bolt, height

    Part Number: 81611-TL0-G22

    ''


    KA - US - 49 State Spec

    • $4.37

  • 030

    motor assy., r. reclining

    Part Number: 81632-TL0-G21

    ''


    KA - US - 49 State Spec

    • $287.48

  • 031

    cover, l. inner-reclining (inner) *nh556l*

    Part Number: 81637-TL0-G21ZA
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 031

    cover, l. inner-reclining (inner) *nh690l*

    Part Number: 81637-TL0-G21ZB
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 032

    cover, l. outer-reclining (inner) *nh556l*

    Part Number: 81647-TL0-G21ZA
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 032

    cover, l. outer-reclining (inner) *nh690l*

    Part Number: 81647-TL0-G21ZB
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 033

    knob *nh556l* (a)

    Part Number: 81651-SDB-A71ZK
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $27.80

  • 033

    knob *nh690l* (a)

    Part Number: 81651-SDB-A71ZY
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $27.80

  • 034

    switch assy., l. (8way)

    Part Number: 81653-SDB-A71

    ''


    KA - US - 49 State Spec

    • $67.15

  • 035

    cover, l. rail (upper) (outer)*nh690l*

    Part Number: 81669-TL2-A01ZB
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $23.45

  • 036

    cover, l. rail (upper) (inner)*nh690l*

    Part Number: 81679-TL0-G21ZB
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $10.73

  • 037

    screw, flat (4x30)

    Part Number: 90101-SDA-000

    ''


    KA - US - 49 State Spec

    • $7.55

  • 038

    screw, tapping (5x10)

    Part Number: 90134-SE3-003

    ''


    KA - US - 49 State Spec

    • $3.03

  • 039

    bolt-washer (10x25)

    Part Number: 90135-S7A-J51

    ''


    KA - US - 49 State Spec

    • $3.78

  • 040

    clip, garnish

    Part Number: 90610-S10-003

    ''


    KA - US - 49 State Spec

    • $2.43

  • 041

    clip, ratchet (10mm)

    Part Number: 90650-S6M-J01

    ''


    KA - US - 49 State Spec

    • $3.83

  • 042

    clip, ratchet (20mm)

    Part Number: 90650-S6M-J11

    ''


    KA - US - 49 State Spec

    • $3.83

  • 043

    clip, trim (5mm) *nh556l*

    Part Number: 90666-SA0-003F6
    (GRAYGE)

    ''


    KA - US - 49 State Spec

    • $4.67

  • 043

    clip, trim (5mm) *nh690l*

    Part Number: 90666-SA0-003J9
    (PREMIUM BLACK)

    ''


    KA - US - 49 State Spec

    • $4.67

  • 044

    clip, connector (natural)

    Part Number: 91533-S5A-003

    ''


    KA - US - 49 State Spec

    • $7.95

  • 045

    clip, connector (dark brown)

    Part Number: 91535-TA0-003

    ''


    KA - US - 49 State Spec

    • $3.60

  • 046

    clip, harness band (96.9mm) (natural)

    Part Number: 91540-S0A-003

    ''


    KA - US - 49 State Spec

    • $4.83

  • 047

    clip, harness band (151.5mm) (natural)

    Part Number: 91540-S30-003

    ''


    KA - US - 49 State Spec

    • $2.50

  • 048

    clip, harness band (164.5mm) (dark blue)

    Part Number: 91542-SNA-003

    ''


    KA - US - 49 State Spec

    • $0.45

  • 049

    screw, tapping (4x8)

    Part Number: 93903-24180

    ''


    KA - US - 49 State Spec

    • $0.57

  • 050

    adjuster, l. power seat

    Part Number: 81610-TL2-A02

    ''


    KA - US - 49 State Spec

    • $701.57

Back to Top
