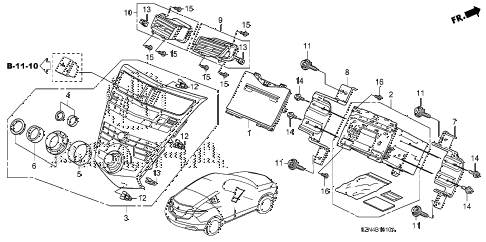

2012 ZDX BASE 5 DOOR 6AT AUDIO UNIT - CENTER MODULE diagram
  • 001

    panel

    • Part Number: 39011-SZN-A01

    '


    KA - US - 49 State Spec

    • $176.15

  • 002

    tuner assy. (alpine)

    • Part Number: 39012-SZN-A02

    '


    KA - US - 49 State Spec

    • $3,577.68

  • 002

    tuner (am/fm/6cd) (2xz1) (rmd)(customer pay)

    • Part Number: 39100-SZN-A01CP

    '


    KA - US - 49 State Spec

    • $512.83

  • 002

    tuner, in-dash (am/fm/6cd) (2xz1) (rmd)

    • Part Number: 39100-SZN-A01RM

    '


    KA - US - 49 State Spec

    • $512.83

  • 003

    panel assy., switch (coo)

    • Part Number: 39050-SZN-326

    '


    KA - US - 49 State Spec

    • $1,130.25

  • 004

    knob assy. a

    • Part Number: 39102-SZN-A21

    '


    KA - US - 49 State Spec

    • $47.58

  • 005

    ring a, jog knob

    • Part Number: 39103-SZN-A01

    '


    KA - US - 49 State Spec

    • $30.27

  • 006

    knob assy. b

    • Part Number: 39105-SZN-A21

    '


    KA - US - 49 State Spec

    • $62.17

  • 007

    bracket, r. radio

    • Part Number: 39111-SZN-A01

    '


    KA - US - 49 State Spec

    • $4.85

  • 008

    bracket, l. audio

    • Part Number: 39161-SZN-A01

    '


    KA - US - 49 State Spec

    • $4.85

  • 009

    outlet assy., r. center *nh690l*

    • Part Number: 77250-SZN-A01ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 010

    outlet assy., l. center *nh690l*

    • Part Number: 77255-SZN-A01ZB

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 011

    bolt-washer (5x25)

    • Part Number: 90133-STX-013

    '


    KA - US - 49 State Spec

    • $0.48

  • 012

    clip, snap fitting (po)(natural)

    • Part Number: 90666-SDA-A01

    '


    KA - US - 49 State Spec

    • $0.50

  • 013

    clip, snap fitting (po)(orange)

    • Part Number: 90666-TA0-A21

    '


    KA - US - 49 State Spec

    • $2.05

  • 014

    bolt, flange (5x7)

    • Part Number: 91551-SE0-003

    '


    KA - US - 49 State Spec

    • $1.27

  • 015

    screw, tapping (3x10)

    • Part Number: 93903-22220

    '


    KA - US - 49 State Spec

    • $0.55

  • 016

    screw, bind (2.6x8)

    • Part Number: 39115-STX-A01

    '


    KA - US - 49 State Spec

    • $0.17
