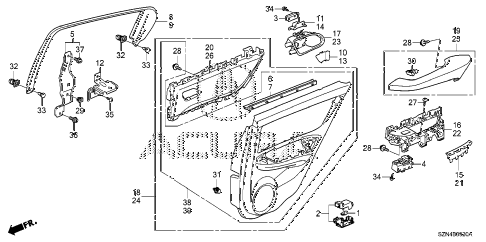

REAR DOOR LINING - BLOCK DIAGRAM & PARTS LIST

Main menu

zoom (-)

zoom (+)

Ref #: 001	Honda Part: bulb, wedge (12v 3.4w) Part Number: 34253-SNA-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.60

Ref #: 002	Honda Part: lens Part Number: 34257-SNB-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $27.32

Ref #: 004	Honda Part: switch assy., rr. power window Part Number: 35770-TK4-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $31.50

Ref #: 005	Honda Part: bracket assy., rr. door lining Part Number: 72725-SZN-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.98

Ref #: 006	Honda Part: weatherstrip, r. rr. door (inner) Part Number: 72835-SZN-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.03

Ref #: 007	Honda Part: weatherstrip, l. rr. door (inner) Part Number: 72875-SZN-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $9.03

Ref #: 008	Honda Part: garnish, r. rr. door sash (inner) nh690l Part Number: 72942-SZN-A02ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $172.88

Ref #: 009	Honda Part: garnish, l. rr. door sash (inner) nh690l Part Number: 72982-SZN-A02ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $172.88

Ref #: 010	Honda Part: cap, r. handle case (inner) nh690l Part Number: 83502-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.70

Ref #: 012	Honda Part: bracket, pull pocket Part Number: 83508-SDA-000ZZ Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $5.12

Ref #: 013	Honda Part: cap, l. handle case (inner) nh690l Part Number: 83552-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $3.70

Ref #: 015	Honda Part: pocket, r. pull nh690l Part Number: 83703-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $6.78

Ref #: 016	Honda Part: panel, r. switch nh690l Part Number: 83704-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $7.53

Ref #: 017	Honda Part: case, r. handle (inner) nh690l Part Number: 83705-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.47

Ref #: 019	Honda Part: armrest assy., r. rr. door lining nh690l Part Number: 83712-SZN-A12ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $93.10

Ref #: 020	Honda Part: centerpad assy., r. rr. door lining nh690l Part Number: 83713-SZN-A11ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $187.38

Ref #: 020	Honda Part: centerpad assy., r. rr. door lining yr386l Part Number: 83713-SZN-A11ZC Standard Qty.: 001 Color: (UMBER TAN) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $187.38

Ref #: 021	Honda Part: pocket, l. pull nh690l Part Number: 83753-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $6.78

Ref #: 022	Honda Part: panel, l. switch nh690l Part Number: 83754-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $7.53

Ref #: 023	Honda Part: case, l. handle (inner) nh690l Part Number: 83755-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $4.47

Ref #: 025	Honda Part: armrest assy., l. rr. door lining nh690l Part Number: 83762-SZN-A12ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $93.10

Ref #: 026	Honda Part: centerpad assy., l. rr. door lining nh690l Part Number: 83763-SZN-A11ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $187.38

Ref #: 026	Honda Part: centerpad assy., l. rr. door lining yr386l Part Number: 83763-SZN-A11ZC Standard Qty.: 001 Color: (UMBER TAN) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $187.38

Ref #: 027	Honda Part: screw, tapping (4x16) Part Number: 90101-S03-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.80

Ref #: 028	Honda Part: screw, tapping (4x12) Part Number: 90132-SE3-003 Standard Qty.: 054 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $2.52

Ref #: 029	Honda Part: grommet, screw (5mm) Part Number: 90662-SB2-003 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.52

Ref #: 030	Honda Part: clip, snap fitting (po)(natural) Part Number: 90666-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.50

Ref #: 031	Honda Part: clip, door lining (light gray) Part Number: 91560-SLJ-J01 Standard Qty.: 016 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.30

Ref #: 032	Honda Part: clip a, sash garnish (inner) Part Number: 91661-SEP-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.13

Ref #: 033	Honda Part: clip b, sash garnish (inner) Part Number: 91662-SEP-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $1.13

Ref #: 034	Honda Part: screw, tapping (3x10) Part Number: 93901-22220 Standard Qty.: 006 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.55

Ref #: 035	Honda Part: screw, tapping (5x16) Part Number: 93903-45320 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.55

Ref #: 036	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.88

Ref #: 037	Honda Part: bolt, flange (6x12) Part Number: 96300-06012-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $0.98

Ref #: 038	Honda Part: lining, r. rr. door assy. (lower) nh557l Part Number: 83710-SZN-A02ZA Standard Qty.: 001 Color: (MEDIUM GRAY) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $436.18

Ref #: 038	Honda Part: lining, r. rr. door assy. (lower) nh690l Part Number: 83710-SZN-A02ZB Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $436.18

Ref #: 039	Honda Part: lining, l. rr. door assy. (lower) nh557l Part Number: 83760-SZN-A02ZA Standard Qty.: 001 Color: (MEDIUM GRAY) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $436.18

Ref #: 039	Honda Part: lining, l. rr. door assy. (lower) nh690l Part Number: 83760-SZN-A02ZB Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	Retail price: $436.18

Ref #: 001	Honda Part: bulb, wedge (12v 3.4w) Part Number: 34253-SNA-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.60

Ref #: 002	Honda Part: lens Part Number: 34257-SNB-003 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$27.32

Ref #: 004	Honda Part: switch assy., rr. power window Part Number: 35770-TK4-A01 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$31.50

Ref #: 005	Honda Part: bracket assy., rr. door lining Part Number: 72725-SZN-A00 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.98

Ref #: 006	Honda Part: weatherstrip, r. rr. door (inner) Part Number: 72835-SZN-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.03

Ref #: 007	Honda Part: weatherstrip, l. rr. door (inner) Part Number: 72875-SZN-A01 Standard Qty.: 001 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$9.03

Ref #: 008	Honda Part: garnish, r. rr. door sash (inner) nh690l Part Number: 72942-SZN-A02ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$172.88

Ref #: 009	Honda Part: garnish, l. rr. door sash (inner) nh690l Part Number: 72982-SZN-A02ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$172.88

Ref #: 010	Honda Part: cap, r. handle case (inner) nh690l Part Number: 83502-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.70

Ref #: 012	Honda Part: bracket, pull pocket Part Number: 83508-SDA-000ZZ Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$5.12

Ref #: 013	Honda Part: cap, l. handle case (inner) nh690l Part Number: 83552-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$3.70

Ref #: 015	Honda Part: pocket, r. pull nh690l Part Number: 83703-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$6.78

Ref #: 016	Honda Part: panel, r. switch nh690l Part Number: 83704-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$7.53

Ref #: 017	Honda Part: case, r. handle (inner) nh690l Part Number: 83705-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.47

Ref #: 019	Honda Part: armrest assy., r. rr. door lining nh690l Part Number: 83712-SZN-A12ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$93.10

Ref #: 020	Honda Part: centerpad assy., r. rr. door lining nh690l Part Number: 83713-SZN-A11ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$187.38

Ref #: 020	Honda Part: centerpad assy., r. rr. door lining yr386l Part Number: 83713-SZN-A11ZC Standard Qty.: 001 Color: (UMBER TAN) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$187.38

Ref #: 021	Honda Part: pocket, l. pull nh690l Part Number: 83753-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$6.78

Ref #: 022	Honda Part: panel, l. switch nh690l Part Number: 83754-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$7.53

Ref #: 023	Honda Part: case, l. handle (inner) nh690l Part Number: 83755-SZN-A01ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$4.47

Ref #: 025	Honda Part: armrest assy., l. rr. door lining nh690l Part Number: 83762-SZN-A12ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$93.10

Ref #: 026	Honda Part: centerpad assy., l. rr. door lining nh690l Part Number: 83763-SZN-A11ZA Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$187.38

Ref #: 026	Honda Part: centerpad assy., l. rr. door lining yr386l Part Number: 83763-SZN-A11ZC Standard Qty.: 001 Color: (UMBER TAN) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$187.38

Ref #: 027	Honda Part: screw, tapping (4x16) Part Number: 90101-S03-000 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.80

Ref #: 028	Honda Part: screw, tapping (4x12) Part Number: 90132-SE3-003 Standard Qty.: 054 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$2.52

Ref #: 029	Honda Part: grommet, screw (5mm) Part Number: 90662-SB2-003 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.52

Ref #: 030	Honda Part: clip, snap fitting (po)(natural) Part Number: 90666-SDA-A01 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.50

Ref #: 031	Honda Part: clip, door lining (light gray) Part Number: 91560-SLJ-J01 Standard Qty.: 016 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.30

Ref #: 032	Honda Part: clip a, sash garnish (inner) Part Number: 91661-SEP-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.13

Ref #: 033	Honda Part: clip b, sash garnish (inner) Part Number: 91662-SEP-A00 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$1.13

Ref #: 034	Honda Part: screw, tapping (3x10) Part Number: 93901-22220 Standard Qty.: 006 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.55

Ref #: 035	Honda Part: screw, tapping (5x16) Part Number: 93903-45320 Standard Qty.: 004 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.55

Ref #: 036	Honda Part: bolt, flange (6x16) Part Number: 95701-06016-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.88

Ref #: 037	Honda Part: bolt, flange (6x12) Part Number: 96300-06012-08 Standard Qty.: 002 Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$0.98

Ref #: 038	Honda Part: lining, r. rr. door assy. (lower) nh557l Part Number: 83710-SZN-A02ZA Standard Qty.: 001 Color: (MEDIUM GRAY) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$436.18

Ref #: 038	Honda Part: lining, r. rr. door assy. (lower) nh690l Part Number: 83710-SZN-A02ZB Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$436.18

Ref #: 039	Honda Part: lining, l. rr. door assy. (lower) nh557l Part Number: 83760-SZN-A02ZA Standard Qty.: 001 Color: (MEDIUM GRAY) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$436.18

Ref #: 039	Honda Part: lining, l. rr. door assy. (lower) nh690l Part Number: 83760-SZN-A02ZB Standard Qty.: 001 Color: (PREMIUM BLACK) Mfg. Origin: 'CAN' Emission Types: KA - US - 49 State Spec	$436.18
