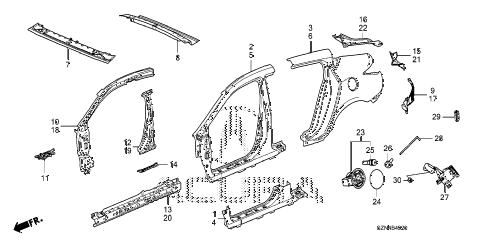

2012 ZDX TECH 5 DOOR 6AT OUTER PANEL diagram
  • 001

    panel, r. side sill

    • Part Number: 04631-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $1,022.08

  • 002

    panel set, r. fr. (outer)

    • Part Number: 04635-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $875.20

  • 003

    panel set, r. rr. (outer) (dot)

    • Part Number: 04636-SZN-A90ZZ

    '


    KA - US - 49 State Spec

    • $1,317.05

  • 004

    panel, l. side sill

    • Part Number: 04641-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $1,022.08

  • 005

    panel set, l. fr. (outer)

    • Part Number: 04645-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $875.20

  • 006

    panel set, l. rr. (outer) (dot)

    • Part Number: 04646-SZN-A90ZZ

    '


    KA - US - 49 State Spec

    • $1,240.23

  • 007

    rail, fr. roof

    • Part Number: 62120-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $110.83

  • 008

    rail, rr. roof

    • Part Number: 62130-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $112.08

  • 009

    extension, r. panel (outer)

    • Part Number: 63102-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $77.08

  • 010

    stiffener set, r. fr. pillar

    • Part Number: 63120-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $230.83

  • 011

    separator, fr. pillar inside (lower)

    • Part Number: 63136-SZN-A01

    '


    KA - US - 49 State Spec

    • $7.33

  • 012

    stiffener set, r. center pillar

    • Part Number: 63210-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $199.58

  • 013

    reinforcement, r. side sill

    • Part Number: 63221-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $84.40

  • 014

    separator, center pillar (inner)

    • Part Number: 63236-SZN-A01

    '


    KA - US - 49 State Spec

    • $10.77

  • 015

    stiffener, r. rr. combination

    • Part Number: 63320-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $176.25

  • 016

    gutter, r. rr.

    • Part Number: 63430-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $72.55

  • 017

    extension, l. panel (outer)

    • Part Number: 63502-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $77.95

  • 018

    stiffener set, l. fr. pillar

    • Part Number: 63520-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $230.83

  • 019

    stiffener set, l. center pillar

    • Part Number: 63610-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $199.58

  • 020

    reinforcement, l. side sill

    • Part Number: 63621-SZN-305ZZ

    '


    KA - US - 49 State Spec

    • $86.90

  • 021

    stiffener, l. rr. combination

    • Part Number: 63720-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $176.25

  • 022

    gutter, l. rr.

    • Part Number: 63830-SZN-A00ZZ

    '


    KA - US - 49 State Spec

    • $72.55

  • 023

    adapter assy., fuel filler

    • Part Number: 74480-SZN-A01

    '


    KA - US - 49 State Spec

    • $73.67

  • 024

    lid, fuel filler

    • Part Number: 74481-SZN-A01ZZ

    '


    KA - US - 49 State Spec

    • $29.92

  • 025

    lifter, fuel lid push

    • Part Number: 74486-TF0-013

    '


    KA - US - 49 State Spec

    • $19.10

  • 026

    grommet, fuel cap

    • Part Number: 74490-SZN-A00

    '


    KA - US - 49 State Spec

    • $15.92

  • 027

    actuator assy., fuel lid

    • Part Number: 74700-SZN-A01

    '


    KA - US - 49 State Spec

    • $24.88

  • 028

    rod, actuator

    • Part Number: 74701-SZN-A00

    '


    KA - US - 49 State Spec

    • $1.93

  • 029

    outlet assy., rr. air

    • Part Number: 75450-SAA-013

    '


    KA - US - 49 State Spec

    • $9.78

  • 030

    nut, hex. (6mm)

    • Part Number: 94001-06200-0S

    '


    KA - US - 49 State Spec

    • $0.28
