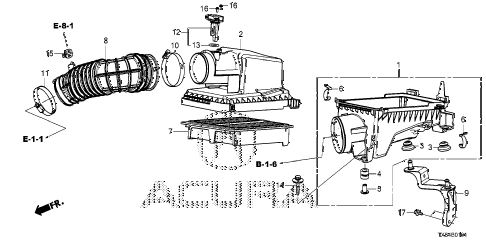

2013 ILX PRE2.4 4 DOOR 6MT AIR CLEANER (2) diagram
  • 001

    case set, air cleaner

    • Part Number: 17201-RX0-A00

    '


    KA - US - 49 State Spec

    • $26.27

  • 002

    cover, air cleaner

    • Part Number: 17210-RX0-A00

    '


    KA - US - 49 State Spec

    • $22.45

  • 003

    rubber, air cleaner mounting

    • Part Number: 17212-P2J-000

    '


    KA - US - 49 State Spec

    Contact your dealer

  • 004

    rubber, air cleaner mounting

    • Part Number: 17212-PN3-000

    '


    KA - US - 49 State Spec

    • $2.40

  • 005

    collar, air cleaner mounting

    • Part Number: 17216-PN3-000

    '


    KA - US - 49 State Spec

    • $3.70

  • 006

    clip, air cleaner

    • Part Number: 17217-P2J-300

    '


    KA - US - 49 State Spec

    • $3.58

  • 007

    element assy., air cleaner

    • Part Number: 17220-RX0-A00

    '


    KA - US - 49 State Spec

    • $22.08

  • 008

    tube, air flow

    • Part Number: 17228-RX0-A00

    '


    KA - US - 49 State Spec

    • $32.93

  • 009

    stay, air cleaner

    • Part Number: 17268-RX0-A00

    '


    KA - US - 49 State Spec

    • $33.67

  • 010

    clamp, air flow (89)

    • Part Number: 17314-R40-003

    '


    KA - US - 49 State Spec

    • $14.83

  • 011

    clamp, air flow (80)

    • Part Number: 17315-R40-003

    '


    KA - US - 49 State Spec

    • $14.48

  • 012

    meter assy., air flow

    • Part Number: 37980-R11-A01

    '


    KA - US - 49 State Spec

    • $100.82

  • 013

    o-ring

    • Part Number: 37985-RTA-003

    '


    KA - US - 49 State Spec

    • $2.25

  • 014

    bolt-washer, special (6x35)

    • Part Number: 90029-PHM-000

    '


    KA - US - 49 State Spec

    • $0.48

  • 015

    clamp, tube (d17)

    • Part Number: 91405-PM5-004

    '


    KA - US - 49 State Spec

    • $5.37

  • 016

    screw-washer (4x10)

    • Part Number: 93893-04010-08

    '


    KA - US - 49 State Spec

    • $0.80

  • 017

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KA - US - 49 State Spec

    • $0.22
