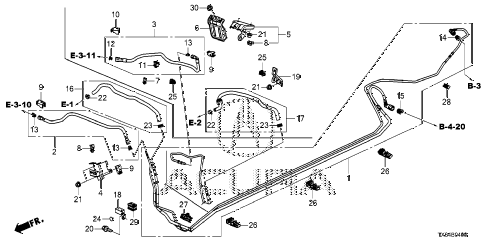

View large diagramHide diagramView diagramView printable catalog
  • 001

    pipe set, fuel

    • Part Number: 16050-TR0-A50

    '


    KA - US - 49 State Spec

    • $91.22

  • 003

    hose, fuel feed

    • Part Number: 16722-RX0-A01

    '


    KA - US - 49 State Spec

    • $34.47

  • 005

    stay assy., fuel feed hose

    • Part Number: 16723-RX0-A00

    '


    KA - US - 49 State Spec

    • $9.75

  • 006

    cover, fuel feed hose stay

    • Part Number: 16724-RX0-A00

    '


    KA - US - 49 State Spec

    • $5.97

  • 007

    clamp a, fuel hose

    • Part Number: 16725-PNA-003

    '


    KA - US - 49 State Spec

    • $2.67

  • 008

    clamp, fuel hose (natural)

    • Part Number: 16725-RAC-003

    '


    KA - US - 49 State Spec

    • $2.42

  • 009

    holder a, fuel connector (white)

    • Part Number: 16725-RNA-A00

    '


    KA - US - 49 State Spec

    • $2.52

  • 010

    holder b, fuel connector (light gray)

    • Part Number: 16726-RYE-A01

    '


    KA - US - 49 State Spec

    • $2.87

  • 011

    clamp, fuel hose (black)

    • Part Number: 16727-PND-004

    '


    KA - US - 49 State Spec

    • $2.43

  • 012

    retainer (blue green) (tokai)

    • Part Number: 17711-S0X-931

    '


    KA - US - 49 State Spec

    • $2.00

  • 013

    retainer (green) (tokai)

    • Part Number: 17711-S0X-A31

    '


    KA - US - 49 State Spec

    • $2.33

  • 014

    retainer (white) (sanoh)

    • Part Number: 17711-S84-004

    '


    KA - US - 49 State Spec

    • $1.78

  • 015

    retainer (white) (sanoh)

    • Part Number: 17711-SNA-A01

    '


    KA - US - 49 State Spec

    • $13.92

  • 017

    hose assy., fuel purge

    • Part Number: 17726-TR0-A51

    '


    KA - US - 49 State Spec

    • $35.87

  • 018

    stay, fuel pipe

    • Part Number: 17761-TR0-A00

    '


    KA - US - 49 State Spec

    • $3.07

  • 019

    stay a, fuel pipe

    • Part Number: 17762-TR0-A50

    '


    KA - US - 49 State Spec

    • $2.45

  • 020

    bolt, ground (6x16)

    • Part Number: 90150-S04-003

    '


    KA - US - 49 State Spec

    • $2.37

  • 021

    nut, paint cutting (6mm)

    • Part Number: 90361-SV4-003

    '


    KA - US - 49 State Spec

    • $1.67

  • 022

    clamp, tube (d13.0)

    • Part Number: 91408-SDB-000

    '


    KA - US - 49 State Spec

    • $2.18

  • 023

    clamp, fuel tube (d15.5)

    • Part Number: 91412-SDC-L01

    '


    KA - US - 49 State Spec

    • $1.72

  • 024

    clip, hood lock cover

    • Part Number: 91515-SDA-A01

    '


    KA - US - 49 State Spec

    • $1.13

  • 025

    clamp a, fuel pipe (black)

    • Part Number: 91591-TA0-A01

    '


    KA - US - 49 State Spec

    • $1.37

  • 026

    clamp c, fuel pipe

    • Part Number: 91596-TR0-A01

    '


    KA - US - 49 State Spec

    • $4.25

  • 027

    clamp d, fuel pipe

    • Part Number: 91597-TR0-A01

    '


    KA - US - 49 State Spec

    • $2.63

  • 028

    clamp f, fuel pipe

    • Part Number: 91598-SNA-A01

    '


    KA - US - 49 State Spec

    • $1.38

  • 029

    rubber e, fuel pipe insulator

    • Part Number: 91599-SDA-A00

    '


    KA - US - 49 State Spec

    • $27.18

  • 030

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23
