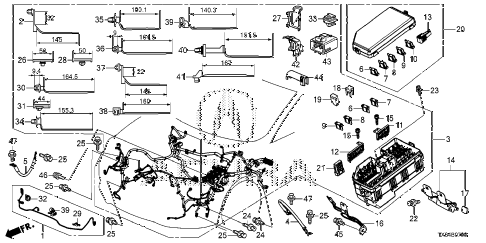

2013 ILX PRE2.4 4 DOOR 6MT WIRE HARNESS (1) diagram
  • 001

    sub-wire, fr. fog

    • Part Number: 32116-TX6-A00

    '


    KA - US - 49 State Spec

    • $24.93

  • 002

    band, harness offset (30) (145mm) (dark gray)

    • Part Number: 32133-SLA-003

    '


    KA - US - 49 State Spec

    • $3.88

  • 003

    wire harness, engine room

    • Part Number: 32200-TX7-A00

    '


    KA - US - 49 State Spec

    • $621.35

  • 004

    cable assy., transmission ground

    • Part Number: 32601-TR7-000

    '


    KA - US - 49 State Spec

    • $17.95

  • 005

    cable, sub-ground

    • Part Number: 32610-TX6-000

    '


    KA - US - 49 State Spec

    • $7.07

  • 006

    fuse, blade (7.5a)

    • Part Number: 38221-SNA-A31

    '


    KA - US - 49 State Spec

    • $1.62

  • 007

    fuse, blade (10a)

    • Part Number: 38221-SNA-A41

    '


    KA - US - 49 State Spec

    • $1.62

  • 008

    fuse, blade (15a)

    • Part Number: 38221-SNA-A51

    '


    KA - US - 49 State Spec

    • $1.62

  • 009

    fuse, blade (20a)

    • Part Number: 38221-SNA-A61

    '


    KA - US - 49 State Spec

    • $1.62

  • 010

    fuse, blade (30a)

    • Part Number: 38221-SNA-A81

    '


    KA - US - 49 State Spec

    • $1.62

  • 011

    fuse, multi block

    • Part Number: 38231-TR0-A01

    '


    KA - US - 49 State Spec

    • $7.97

  • 012

    fuse, multi block

    • Part Number: 38232-TR0-A01

    '


    KA - US - 49 State Spec

    • $7.97

  • 013

    puller, fuse

    • Part Number: 38235-TA0-A01

    '


    KA - US - 49 State Spec

    • $0.90

  • 014

    bracket, relay box (mt)

    • Part Number: 38251-TR0-A00

    '


    KA - US - 49 State Spec

    • $8.45

  • 015

    bolt (5x20)

    • Part Number: 38251-TR0-A01

    '


    KA - US - 49 State Spec

    • $0.53

  • 016

    bracket, relay box

    • Part Number: 38252-TX6-A00

    '


    KA - US - 49 State Spec

    • $6.27

  • 017

    rubber (10x10)

    • Part Number: 38253-TR0-000

    '


    KA - US - 49 State Spec

    • $0.20

  • 018

    busbar assy., short (mini fuse 4p)

    • Part Number: 38255-SJH-003

    '


    KA - US - 49 State Spec

    • $10.60

  • 019

    detector unit, electronic load

    • Part Number: 38255-SNA-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 020

    cover, relay box (upper)

    • Part Number: 38256-TX6-A11

    '


    KA - US - 49 State Spec

    • $12.12

  • 021

    relay, module

    • Part Number: 38830-TR2-A01

    '


    KA - US - 49 State Spec

    • $231.25

  • 022

    bolt, special (6x14)

    • Part Number: 90113-SAA-003

    '


    KA - US - 49 State Spec

    • $1.72

  • 023

    bolt (6x21)

    • Part Number: 90114-STX-A00

    '


    KA - US - 49 State Spec

    • $0.70

  • 024

    bolt, ground (6x16) (washer 12.5mm) (zn)

    • Part Number: 90148-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 025

    bolt, ground (6x16)

    • Part Number: 90149-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 026

    clip, wire harness (50mm) (blue)(harness taping)

    • Part Number: 90627-SA5-003

    '


    KA - US - 49 State Spec

    • $4.43

  • 027

    cover, engine control module connector (a,b)

    • Part Number: 91501-R40-A00

    '


    KA - US - 49 State Spec

    • $0.30

  • 028

    clip, wire harness (50mm) (black)(harness taping)

    • Part Number: 91507-693-003

    '


    KA - US - 49 State Spec

    • $4.55

  • 029

    clip, wire harness (50mm) (gray)

    • Part Number: 91507-752-003

    '


    KA - US - 49 State Spec

    • $6.38

  • 030

    clip, harness band (164.5mm) (brown)

    • Part Number: 91507-SNA-003

    '


    KA - US - 49 State Spec

    • $0.28

  • 031

    clip, wire harness (44mm) (natural)

    • Part Number: 91531-S04-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 032

    clip, connector (dark blue)

    • Part Number: 91535-STK-003

    '


    KA - US - 49 State Spec

    • $3.80

  • 033

    clip, relay holder (natural)

    • Part Number: 91536-STK-003

    '


    KA - US - 49 State Spec

    • $0.20

  • 034

    clip, harness band (155.3mm) (black)

    • Part Number: 91540-STK-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 035

    clip, harness band (100.1mm) (natural)

    • Part Number: 91540-TA0-003

    '


    KA - US - 49 State Spec

    • $0.12

  • 036

    clip, harness band (164.5mm) (dark blue)

    • Part Number: 91542-SNA-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 037

    band, harness offset (20) (145mm) (dark blue)

    • Part Number: 91542-TF0-003

    '


    KA - US - 49 State Spec

    • $3.23

  • 038

    clip, band (160mm) (natural)

    • Part Number: 91547-SH3-003

    '


    KA - US - 49 State Spec

    • $1.60

  • 039

    clip, harness band (140.3mm) (black)

    • Part Number: 91549-TA0-003

    '


    KA - US - 49 State Spec

    • $0.57

  • 040

    clip, harness band (30) (151.5mm) (black)

    • Part Number: 91558-SAA-003

    '


    KA - US - 49 State Spec

    • $4.40

  • 041

    clip, harness band (167mm) (natural)

    • Part Number: 91559-S47-003

    '


    KA - US - 49 State Spec

    • $5.02

  • 043

    connector, waterproof (23p 040 j/c) (black)

    • Part Number: 91723-SNA-003

    '


    KA - US - 49 State Spec

    • $5.18

  • 044

    cover, lifter lever (white)

    • Part Number: 91765-TK8-A01

    '


    KA - US - 49 State Spec

    • $1.32

  • 045

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 046

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 047

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
