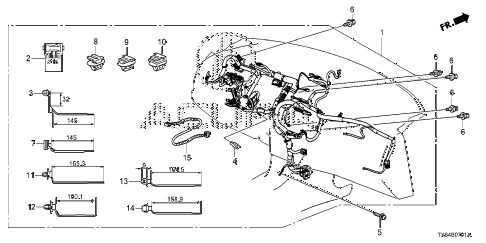

2013 ILX PRE2.4 4 DOOR 6MT WIRE HARNESS (2) diagram
  • 001

    wire harness, instrument (include usb cord)

    • Part Number: 32117-TX7-A00

    '


    KA - US - 49 State Spec

    • $455.45

  • 002

    holder, corrugated (15mm) (black)

    • Part Number: 32119-R60-003

    '


    KA - US - 49 State Spec

    • $1.58

  • 003

    band, harness offset (30) (145mm) (dark gray)

    • Part Number: 32133-SLA-003

    '


    KA - US - 49 State Spec

    • $3.88

  • 004

    bulb (14v 1.4w)

    • Part Number: 35505-TA5-A51

    '


    KA - US - 49 State Spec

    • $3.08

  • 005

    bolt, torx ground (6x20)

    • Part Number: 90137-S84-A01

    '


    KA - US - 49 State Spec

    • $3.62

  • 006

    bolt, ground (6x16) (washer 12.5mm) (zn)

    • Part Number: 90148-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 007

    clip, harness band (145mm) (natural)

    • Part Number: 91531-SDA-003

    '


    KA - US - 49 State Spec

    • $3.03

  • 008

    clip, connector (natural)

    • Part Number: 91533-STK-003

    '


    KA - US - 49 State Spec

    • $3.22

  • 009

    clip, connector (dark gray)

    • Part Number: 91534-SWA-003

    '


    KA - US - 49 State Spec

    • $4.80

  • 010

    clip, relay holder (natural)

    • Part Number: 91536-STK-003

    '


    KA - US - 49 State Spec

    • $0.20

  • 011

    clip, harness band (155.3mm) (black)

    • Part Number: 91540-STK-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 012

    clip, harness band (100.1mm) (natural)

    • Part Number: 91540-TA0-003

    '


    KA - US - 49 State Spec

    • $0.12

  • 013

    clip, harness band (164.5mm) (dark blue)

    • Part Number: 91542-SNA-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 014

    clip, harness band (158.9mm) (black)

    • Part Number: 91542-SWY-003

    '


    KA - US - 49 State Spec

    • $0.30
