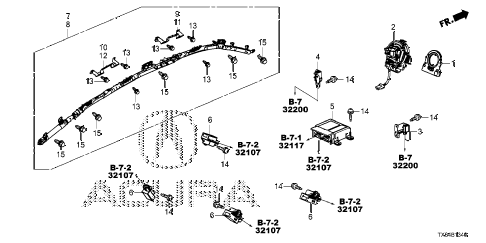

2013 ILX PRE2.4 4 DOOR 6MT SRS UNIT diagram
  • 001

    sensor assy., steering

    • Part Number: 35000-TR0-A01

    '


    KA - US - 49 State Spec

    • $71.23

  • 002

    reel assy., cable

    • Part Number: 77900-TR0-A21

    '


    KA - US - 49 State Spec

    • $38.68

  • 003

    bracket, r. srs sensor

    • Part Number: 77930-TX6-B11

    '


    KA - US - 49 State Spec

    • $53.62

  • 004

    bracket, l. srs sensor

    • Part Number: 77930-TX6-B21

    '


    KA - US - 49 State Spec

    • $53.62

  • 006

    sensor assy., side impact (continental)

    • Part Number: 77970-T0A-J01

    '


    KA - US - 49 State Spec

    • $32.78

  • 007

    module assy., r. side curtain airbag

    • Part Number: 78870-TX6-A82

    '


    KA - US - 49 State Spec

    • $594.85

  • 008

    module assy., l. side curtain airbag

    • Part Number: 78875-TX6-A82

    '


    KA - US - 49 State Spec

    • $594.85

  • 009

    bracket, r. fr. grab rail

    • Part Number: 83241-TX6-A80

    '


    KA - US - 49 State Spec

    • $10.18

  • 010

    bracket, r. rr. grab rail

    • Part Number: 83242-TX6-A80

    '


    KA - US - 49 State Spec

    • $10.18

  • 011

    bracket, l. fr. grab rail

    • Part Number: 83291-TX6-A80

    '


    KA - US - 49 State Spec

    • $10.18

  • 012

    bracket, l. rr. grab rail

    • Part Number: 83292-TX6-A80

    '


    KA - US - 49 State Spec

    • $10.18

  • 013

    bolt-washer (5x16)

    • Part Number: 90133-SDC-003

    '


    KA - US - 49 State Spec

    • $2.80

  • 014

    bolt, torx ground (6x20)

    • Part Number: 90137-S84-A01

    '


    KA - US - 49 State Spec

    • $3.62

  • 015

    bolt-washer (6x19) (side curtain airbag)

    • Part Number: 90178-SNA-003

    '


    KA - US - 49 State Spec

    • $0.88
