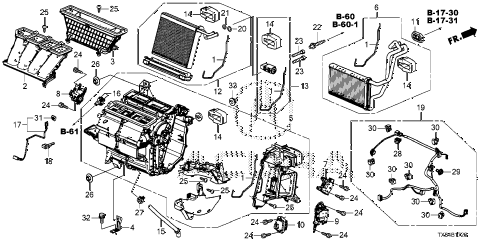

View large diagramHide diagramView diagramView printable catalog
  • 001

    seal a

    • Part Number: 79021-TR0-A01

    '


    KA - US - 49 State Spec

    • $2.17

  • 002

    duct, vent joint

    • Part Number: 79028-TX6-A00

    '


    KA - US - 49 State Spec

    • $17.13

  • 003

    duct, defroster joint

    • Part Number: 79029-TX6-A00

    '


    KA - US - 49 State Spec

    • $19.62

  • 004

    stay, hvac

    • Part Number: 79105-TR0-A00

    '


    KA - US - 49 State Spec

    • $2.47

  • 005

    heater sub-assy.

    • Part Number: 79106-TX6-A41

    '


    KA - US - 49 State Spec

    • $162.23

  • 006

    core sub-assy., heater

    • Part Number: 79115-TX6-A41

    '


    KA - US - 49 State Spec

    • $63.55

  • 007

    motor assy., mode servo

    • Part Number: 79140-TR0-A01

    '


    KA - US - 49 State Spec

    • $27.32

  • 008

    motor assy., air mix (driver side)

    • Part Number: 79160-TX6-A41

    '


    KA - US - 49 State Spec

    • $39.88

  • 009

    motor assy., air mix (passenger side)

    • Part Number: 79170-T0A-A41

    '


    KA - US - 49 State Spec

    • $31.90

  • 010

    transistor, power

    • Part Number: 79330-TR0-A01

    '


    KA - US - 49 State Spec

    • $42.77

  • 011

    grommet, heater pipe

    • Part Number: 79731-S5A-000

    '


    KA - US - 49 State Spec

    • $7.15

  • 012

    evaporator

    • Part Number: 80211-TX6-A41

    '


    KA - US - 49 State Spec

    • $154.48

  • 013

    valve assy., expansion

    • Part Number: 80221-TR0-A02

    '


    KA - US - 49 State Spec

    • $50.63

  • 014

    seal, expansion valve

    • Part Number: 80222-TR0-A02

    '


    KA - US - 49 State Spec

    • $10.18

  • 015

    hose, drain

    • Part Number: 80271-TS6-H00

    '


    KA - US - 49 State Spec

    • $5.90

  • 016

    aspirator

    • Part Number: 80534-S84-A41

    '


    KA - US - 49 State Spec

    • $9.33

  • 017

    thermistor, air conditioner

    • Part Number: 80560-TR0-A01

    '


    KA - US - 49 State Spec

    • $12.65

  • 018

    clip, evaporator sensor

    • Part Number: 80566-SMA-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 019

    sub-harness, air conditioner

    • Part Number: 80650-TX6-A40

    '


    KA - US - 49 State Spec

    • $28.43

  • 020

    o-ring (5/8")

    • Part Number: 80871-SN7-003

    '


    KA - US - 49 State Spec

    • $3.32

  • 021

    o-ring (1/2")

    • Part Number: 80872-ST7-000

    '


    KA - US - 49 State Spec

    • $3.32

  • 022

    bolt, stud (6x49)

    • Part Number: 90121-SNA-A00

    '


    KA - US - 49 State Spec

    • $7.40

  • 023

    bolt, socket (5x40)

    • Part Number: 90126-S5A-003

    '


    KA - US - 49 State Spec

    • $3.00

  • 024

    screw, tapping (4x16)

    • Part Number: 90127-S84-003

    '


    KA - US - 49 State Spec

    • $1.33

  • 025

    screw, tapping (4x16)

    • Part Number: 90127-SX0-003

    '


    KA - US - 49 State Spec

    • $1.80

  • 026

    nut-washer (6mm) (paint cutting)

    • Part Number: 90321-SV4-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 027

    clip, drain hose

    • Part Number: 90661-S2A-003

    '


    KA - US - 49 State Spec

    • $3.75

  • 028

    clip, connector (natural)

    • Part Number: 91533-STK-003

    '


    KA - US - 49 State Spec

    • $3.22

  • 029

    clip, harness band (164.5mm) (dark blue)

    • Part Number: 91542-SNA-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 030

    clip, harness band (140.3mm) (black)

    • Part Number: 91549-TA0-003

    '


    KA - US - 49 State Spec

    • $0.57

  • 031

    clip, connector (orange)

    • Part Number: 91580-SM4-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 032

    bolt-washer (6x16)

    • Part Number: 93403-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

  • 033

    nut-washer (8mm)

    • Part Number: 94071-08080

    '


    KA - US - 49 State Spec

    • $0.82
