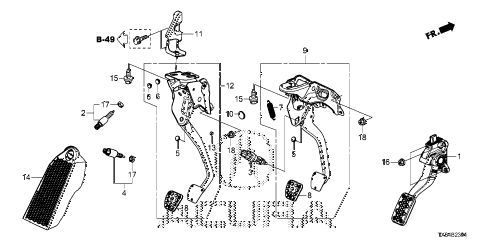

2013 ILX PRE2.4 4 DOOR 6MT PEDAL (2) diagram
  • 001

    pedal assy., accelerator

    • Part Number: 17800-TR0-L01

    '


    KA - US - 49 State Spec

    • $83.35

  • 002

    switch assy., clutch (inhibiter)

    • Part Number: 35710-SE3-A01

    '


    KA - US - 49 State Spec

    • $50.87

  • 003

    switch assy., stop & cruise (panasonic)

    • Part Number: 36750-SMA-003

    '


    KA - US - 49 State Spec

    • $6.07

  • 003

    switch assy., stop & cruise (panasonic)

    • Part Number: 36750-SMA-013

    '


    KA - US - 49 State Spec

    • $6.07

  • 004

    switch assy., clutch

    • Part Number: 36760-SM4-003

    '


    KA - US - 49 State Spec

    • $31.87

  • 005

    pad, pedal stopper

    • Part Number: 46505-SA5-000

    '


    KA - US - 49 State Spec

    • $2.43

  • 006

    pad, pedal stopper

    • Part Number: 46505-SAA-J00

    '


    KA - US - 49 State Spec

    • $9.33

  • 007

    spring assy., pedal return

    • Part Number: 46530-TL0-E02

    '


    KA - US - 49 State Spec

    • $5.85

  • 008

    cover set, pedal

    • Part Number: 46545-SNW-J21

    '


    KA - US - 49 State Spec

    • $54.03

  • 009

    pedal assy., brake

    • Part Number: 46600-TR0-L01

    '


    KA - US - 49 State Spec

    • $128.15

  • 010

    stopper, clutch pedal

    • Part Number: 46905-SK7-000

    '


    KA - US - 49 State Spec

    • $7.12

  • 011

    bracket, clutch pedal (upper)

    • Part Number: 46908-TX7-A00

    '


    KA - US - 49 State Spec

    • $21.42

  • 012

    pedal, clutch

    • Part Number: 46910-TR0-L41

    '


    KA - US - 49 State Spec

    • $185.90

  • 013

    bush, pedal pin

    • Part Number: 46911-SD4-930

    '


    KA - US - 49 State Spec

    • $3.22

  • 014

    bracket, footrest

    • Part Number: 46991-TR0-A51

    '


    KA - US - 49 State Spec

    • $34.67

  • 015

    bolt, flange

    • Part Number: 90104-TR0-A01

    '


    KA - US - 49 State Spec

    • $0.48

  • 016

    nut, paint cutting (8mm)

    • Part Number: 90361-S3C-003

    '


    KA - US - 49 State Spec

    • $1.40

  • 017

    nut, hex. (12mm)

    • Part Number: 94002-12080-0S

    '


    KA - US - 49 State Spec

    • $0.77

  • 018

    nut, flange (8mm)

    • Part Number: 94050-08080

    '


    KA - US - 49 State Spec

    • $0.25
