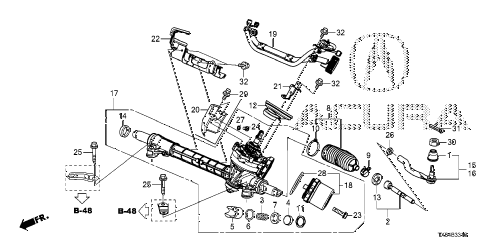

View large diagramHide diagramView diagramView printable catalog
  • 001

    boot, tie rod end (musashi)

    • Part Number: 52362-S30-003

    '


    KA - US - 49 State Spec

    • $14.50

  • 002

    end set, rack

    • Part Number: 53010-TR0-A01

    '


    KA - US - 49 State Spec

    • $32.10

  • 003

    spring, rack guide pressure

    • Part Number: 53413-S04-J51

    '


    KA - US - 49 State Spec

    • $2.77

  • 004

    screw, rack guide

    • Part Number: 53414-TR8-P01

    '


    KA - US - 49 State Spec

    • $2.73

  • 005

    guide, steering rack

    • Part Number: 53416-TR0-A01

    '


    KA - US - 49 State Spec

    • $14.97

  • 006

    o-ring, rack guide

    • Part Number: 53417-SMG-E01

    '


    KA - US - 49 State Spec

    • $0.63

  • 007

    washer, disk

    • Part Number: 53418-S5A-003

    '


    KA - US - 49 State Spec

    • $3.33

  • 008

    dust seal set

    • Part Number: 53429-TR0-A02

    '


    KA - US - 49 State Spec

    • $8.97

  • 009

    clip, steering tie rod

    • Part Number: 53434-S84-A01

    '


    KA - US - 49 State Spec

    • $2.18

  • 010

    band c, bellows

    • Part Number: 53447-S5A-003

    '


    KA - US - 49 State Spec

    • $2.83

  • 011

    nut, lock

    • Part Number: 53458-S84-A01

    '


    KA - US - 49 State Spec

    • $2.98

  • 012

    grommet, steering

    • Part Number: 53502-TR0-A00

    '


    KA - US - 49 State Spec

    • $12.55

  • 013

    washer, tie rod lock

    • Part Number: 53536-SJK-003

    '


    KA - US - 49 State Spec

    • $3.62

  • 014

    rubber, stopper

    • Part Number: 53537-S3N-003

    '


    KA - US - 49 State Spec

    • $2.07

  • 015

    end, r. tie rod

    • Part Number: 53540-TR0-A01

    '


    KA - US - 49 State Spec

    • $21.08

  • 016

    end, l. tie rod

    • Part Number: 53560-TR0-A01

    '


    KA - US - 49 State Spec

    • $21.08

  • 018

    motor

    • Part Number: 53602-TR0-A03

    '


    KA - US - 49 State Spec

    • $427.40

  • 019

    harness, eps (lh)

    • Part Number: 53680-TR0-Y01

    '


    KA - US - 49 State Spec

    • $63.73

  • 020

    plate, power steering heat baffle (lh)

    • Part Number: 53692-TR7-A00

    '


    KA - US - 49 State Spec

    • $10.73

  • 021

    bracket a, harness (lh)

    • Part Number: 53693-TR0-A00

    '


    KA - US - 49 State Spec

    • $1.97

  • 022

    bracket b, harness (lh)

    • Part Number: 53694-TR0-A00

    '


    KA - US - 49 State Spec

    • $12.80

  • 023

    bolt, flange (8x30)

    • Part Number: 90102-TR0-A01

    '


    KA - US - 49 State Spec

    • $1.70

  • 024

    screw, pan (5x8)

    • Part Number: 90103-S0A-N01

    '


    KA - US - 49 State Spec

    • $1.28

  • 025

    bolt, gear box mounting

    • Part Number: 90108-TR0-000

    '


    KA - US - 49 State Spec

    • $3.43

  • 026

    nut, hex. (14mm)

    • Part Number: 90301-SEP-003

    '


    KA - US - 49 State Spec

    • $1.33

  • 027

    washer, drain

    • Part Number: 90428-S0A-003

    '


    KA - US - 49 State Spec

    • $2.53

  • 028

    o-ring, motor (79.4x3.1)

    • Part Number: 91351-TR0-A01

    '


    KA - US - 49 State Spec

    • $1.50

  • 029

    bolt-washer (6x14)

    • Part Number: 93404-06014-05

    '


    KA - US - 49 State Spec

    • $0.88

  • 030

    nut, hex. (12mm)

    • Part Number: 94030-12280

    '


    KA - US - 49 State Spec

    • $0.77

  • 031

    pin, split (3.0x22)

    • Part Number: 94201-30220

    '


    KA - US - 49 State Spec

    • $0.20

  • 032

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
