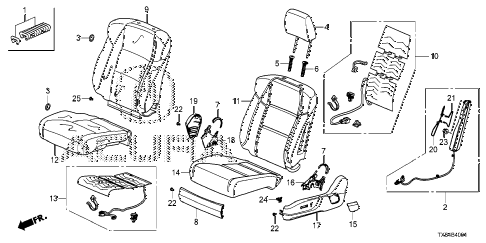

2013 ILX PRE2.4 4 DOOR 6MT FRONT SEAT (L.) (POWER SEAT) diagram
Back to Top
c-clip set, trim fastener (30 pieces)module assy., l. sidefastenerfastenerheadrest assy., fr. *nh690l*guide, headrest *nh690l*guide, headrest lock *nh690l*cover, inner-reclining (upper)*nh690l*cover, inner-reclining (upper)*nh690l*cover, l. fr. seat cushion *nh690l*cover, l. fr. seat-back trim *nh690l*heater, l. fr. seat-backpad, l. fr. seat-backcover, l. fr. seat cushion trim *nh690l*heater, l. fr. seat cushionpad, l. fr. seat cushioncover, l. reclining lap (outer) *nh690l*cover, l. outer-reclining (inner) *nh690l*cover, l. reclining (outer) *nh690l*cover, l. inner-reclining (lower) (inner) *nh690l*cover, l. reclining (inner) *nh690l*wire a, l. fr. seat-back airbagwire b, l. fr. seat-back airbagscrew, tapping (5x10)screw, tapping (5x10)screw, tapping (5x10)nut-washer (6mm)clip, garnishclip, trim (6mm) *nh167l*
