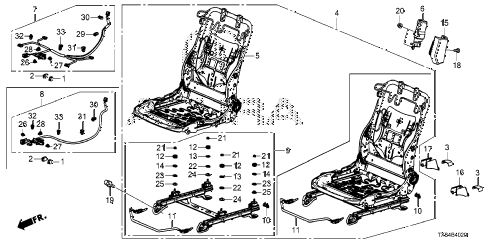

2013 ILX PRE2.4 4 DOOR 6MT FRONT SEAT COMPONENTS (R.) diagram
  • 001

    relay assy., power (micro iso)(mitsuba)

    • Part Number: 39794-SDA-A05

    '


    KA - US - 49 State Spec

    • $28.17

  • 002

    relay assy., power (5p) (micro iso)

    • Part Number: 39794-SNB-E01

    '


    KA - US - 49 State Spec

    • $20.15

  • 003

    cover, rr. foot *nh690l*

    • Part Number: 81106-TA0-000ZE

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $7.55

  • 004

    frame, r. fr. seat

    • Part Number: 81126-TX6-A01

    '


    KA - US - 49 State Spec

    • $969.08

  • 005

    frame, r. fr.

    • Part Number: 81136-TX6-A01

    '


    KA - US - 49 State Spec

    • $361.08

  • 006

    opds unit

    • Part Number: 81169-TX6-A01

    '


    KA - US - 49 State Spec

    • $155.72

  • 007

    cord, fr. seat opds

    • Part Number: 81162-TR0-A61

    '


    KA - US - 49 State Spec

    • $101.62

  • 009

    sensor, seat weight

    • Part Number: 81166-TX6-A01

    '


    KA - US - 49 State Spec

    • $340.65

  • 010

    cap, slide adjuster end (upper)

    • Part Number: 81262-SNA-A01

    '


    KA - US - 49 State Spec

    • $5.37

  • 011

    lever, fr. seat cushion slide

    • Part Number: 81273-TR0-A01

    '


    KA - US - 49 State Spec

    • $349.43

  • 012

    spring, fr. seat sws

    • Part Number: 81281-STK-A01

    '


    KA - US - 49 State Spec

    • $10.28

  • 013

    spacer, sws (b)

    • Part Number: 81282-STK-A01

    '


    KA - US - 49 State Spec

    • $6.67

  • 014

    spacer, sws (a)

    • Part Number: 81283-STK-A01

    '


    KA - US - 49 State Spec

    • $6.40

  • 015

    cover, r. fr. seat-back opds

    • Part Number: 81284-TR0-A01

    '


    KA - US - 49 State Spec

    • $14.55

  • 016

    cover, l. fr. seat foot (inner) *nh690l* (rr)

    • Part Number: 81506-TR0-A01ZH

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $6.82

  • 017

    cover, l. fr. seat foot (outer) *nh690l* (rr)

    • Part Number: 81507-TR0-A01ZH

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $6.82

  • 018

    screw, tapping (5x10)

    • Part Number: 90134-SE3-003

    '


    KA - US - 49 State Spec

    • $2.52

  • 019

    bolt-washer (10x25)

    • Part Number: 90135-S7A-J51

    '


    KA - US - 49 State Spec

    • $2.87

  • 020

    nut-washer (6mm)

    • Part Number: 90321-SP0-A80

    '


    KA - US - 49 State Spec

    • $0.40

  • 021

    nut, torx (m10)

    • Part Number: 90351-SNA-A01

    '


    KA - US - 49 State Spec

    • $1.95

  • 022

    bush, sws (b)(natural)

    • Part Number: 91052-SNA-A01

    '


    KA - US - 49 State Spec

    • $2.20

  • 023

    bush, sws (a)(black)

    • Part Number: 91053-SNA-A01

    '


    KA - US - 49 State Spec

    • $2.20

  • 024

    collar, sws (b)

    • Part Number: 91152-STK-A01

    '


    KA - US - 49 State Spec

    • $4.70

  • 025

    collar, sws (a)

    • Part Number: 91153-STK-A01

    '


    KA - US - 49 State Spec

    • $4.70

  • 026

    clip, connector (natural)

    • Part Number: 91533-STK-003

    '


    KA - US - 49 State Spec

    • $3.22

  • 027

    clip, connector (dark gray)

    • Part Number: 91534-SWA-003

    '


    KA - US - 49 State Spec

    • $4.80

  • 028

    clip, relay holder (natural)

    • Part Number: 91536-STK-003

    '


    KA - US - 49 State Spec

    • $0.20

  • 029

    clip, harness band (155.3mm) (black)

    • Part Number: 91540-STK-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 030

    clip, harness band (100.1mm) (natural)

    • Part Number: 91540-TA0-003

    '


    KA - US - 49 State Spec

    • $0.12

  • 031

    clip a, holder band harness (129mm) (black)

    • Part Number: 91541-TR0-003

    '


    KA - US - 49 State Spec

    • $7.15

  • 032

    clip, harness band (164.5mm) (dark blue)

    • Part Number: 91542-SNA-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 033

    clip b, holder band harness (129mm)

    • Part Number: 91542-TR0-003

    '


    KA - US - 49 State Spec

    • $7.20
