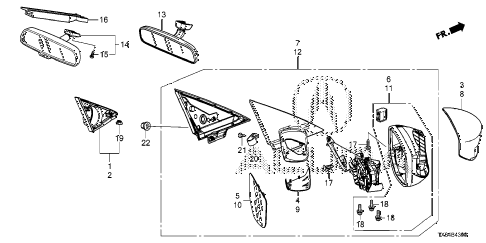

2013 ILX PRE2.4 4 DOOR 6MT MIRROR diagram
Back to Top
cover, r. fr. door tweeter *nh690l*cover, l. fr. door tweeter *nh690l*cap, r. skull *b576p*cap, r. skull *r543p*cap, r. skull *nh700m*cap, r. skull *nh737m*cap, r. skull *nh731p*cap, r. skull *nh788p*cover, r. basemirror, r. (heated)housing set, r.mirror assy., r. doorcap, l. skull *b576p*cap, l. skull *r543p*cap, l. skull *nh700m*cap, l. skull *nh737m*cap, l. skull *nh731p*cap, l. skull *nh788p*cover, l. basemirror, l. (heated)housing set, l.mirror assy., l. doormirror assy., rearview (auto day/night)screw, torx (#10 x 3/8)cover, rearview mirrorscrew, tapping (4x16) (truss)screw, tapping (4x16) (truss)screw-washer (5x12)screw-washer (5x12)screw-washer (5x12)clip, snap fitting (po)(orange)clamp, harnessscrew, tapping (4x10)nut, flange (6mm)
