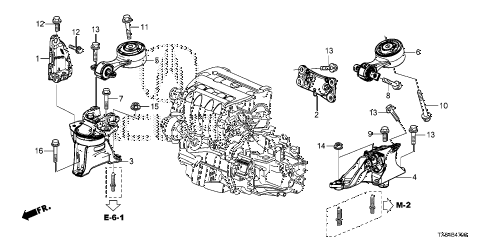

2013 ILX PRE2.4 4 DOOR 6MT ENGINE MOUNTS (MT) diagram
  • 001

    stay, side engine mounting

    • Part Number: 50625-TR7-A01

    '


    KA - US - 49 State Spec

    • $50.01

  • 002

    bracket, torque rod (lower)

    • Part Number: 50690-TR7-A01

    '


    KA - US - 49 State Spec

    • $38.68

  • 003

    mounting, engine side

    • Part Number: 50820-TR7-A01

    '


    KA - US - 49 State Spec

    • $197.37

  • 003

    mounting, engine side

    • Part Number: 50820-TX6-A01

    '


    KA - US - 49 State Spec

    • $212.67

  • 004

    mounting, transmission

    • Part Number: 50850-TR7-A01

    '


    KA - US - 49 State Spec

    • $271.80

  • 005

    rod, torque (upper)

    • Part Number: 50880-TR7-A01

    '


    KA - US - 49 State Spec

    • $130.78

  • 006

    rod, torque (lower)

    • Part Number: 50890-TR7-A01

    '


    KA - US - 49 State Spec

    • $148.17

  • 007

    bolt, flange (14x47)

    • Part Number: 90160-SVB-A00

    '


    KA - US - 49 State Spec

    • $3.98

  • 008

    bolt, flange (12x38)

    • Part Number: 90162-SYP-000

    '


    KA - US - 49 State Spec

    • $1.57

  • 009

    bolt, flange (12x45)

    • Part Number: 90165-SDA-A00

    '


    KA - US - 49 State Spec

    • $1.35

  • 010

    bolt, flange (14x93)

    • Part Number: 90165-SNA-A00

    '


    KA - US - 49 State Spec

    • $3.52

  • 011

    bolt, flange (12x97)

    • Part Number: 90165-SWY-E00

    '


    KA - US - 49 State Spec

    • $10.52

  • 012

    bolt, flange (10x35)

    • Part Number: 90168-S2A-010

    '


    KA - US - 49 State Spec

    • $2.75

  • 013

    bolt, flange (12x35)

    • Part Number: 90168-S5A-000

    '


    KA - US - 49 State Spec

    • $1.30

  • 014

    nut, flange (12mm)

    • Part Number: 90371-SEF-000

    '


    KA - US - 49 State Spec

    • $0.67

  • 015

    nut, flange (14mm)

    • Part Number: 90371-SJD-003

    '


    KA - US - 49 State Spec

    • $2.08

  • 016

    bolt, flange (12x45)

    • Part Number: 95701-12045-08

    '


    KA - US - 49 State Spec

    • $1.80
