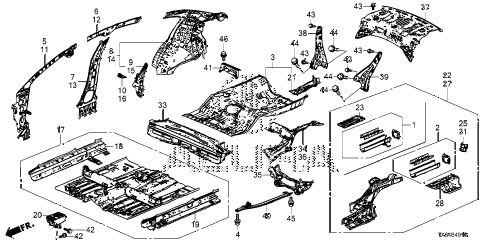

View large diagramHide diagramView diagramView printable catalog
  • 001

    frame b set, r. rr.

    • Part Number: 04653-TR3-A00ZZ

    '


    KA - US - 49 State Spec

    • $102.75

  • 002

    frame b set, l. rr.

    • Part Number: 04654-TR3-A00ZZ

    '


    KA - US - 49 State Spec

    • $88.58

  • 003

    panel set, rr. floor

    • Part Number: 04655-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $1,317.50

  • 004

    bolt-washer (10x45)

    • Part Number: 17525-SAA-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 005

    pillar, r. fr.

    • Part Number: 64115-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $103.28

  • 006

    rail, r. roof side

    • Part Number: 64211-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $35.15

  • 007

    pillar, r. center (inner)

    • Part Number: 64220-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $113.47

  • 008

    panel, r. rr. inside

    • Part Number: 64300-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $592.88

  • 009

    extension, r. rr. wheel arch

    • Part Number: 64320-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $35.47

  • 010

    separator, r. rr. wheel arch

    • Part Number: 64323-TX6-A01

    '


    KA - US - 49 State Spec

    • $10.10

  • 011

    pillar, l. fr.

    • Part Number: 64515-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $105.28

  • 012

    rail, l. roof side

    • Part Number: 64611-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $36.87

  • 013

    pillar, l. center (inner)

    • Part Number: 64620-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $69.85

  • 014

    panel, l. rr. inside

    • Part Number: 64700-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $600.53

  • 015

    extension, l. rr. wheel arch

    • Part Number: 64720-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $35.47

  • 016

    separator, l. rr. wheel arch

    • Part Number: 64723-TX6-A01

    '


    KA - US - 49 State Spec

    • $10.10

  • 017

    floor, fr.

    • Part Number: 65100-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $948.60

  • 018

    sill, r. fr. inside

    • Part Number: 65140-TR0-A00ZZ

    '


    KA - US - 49 State Spec

    • $114.83

  • 019

    sill, l. fr. inside

    • Part Number: 65190-TR0-A00ZZ

    '


    KA - US - 49 State Spec

    • $156.30

  • 020

    box, load abs

    • Part Number: 65250-TR0-A00ZZ

    '


    KA - US - 49 State Spec

    • $77.25

  • 021

    stiffener, rr. jack

    • Part Number: 65513-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $62.08

  • 022

    frame, r. rr.

    • Part Number: 65610-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $351.40

  • 023

    stiffener, r. rr. floor side

    • Part Number: 65615-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $34.17

  • 025

    gusset, r. rr. panel

    • Part Number: 65626-SNA-A01ZZ

    '


    KA - US - 49 State Spec

    • $16.57

  • 027

    frame, l. rr.

    • Part Number: 65660-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $343.88

  • 028

    stiffener, l. rr. floor side

    • Part Number: 65665-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $34.17

  • 031

    gusset, l. rr. panel

    • Part Number: 65676-SNA-A01ZZ

    '


    KA - US - 49 State Spec

    • $16.57

  • 033

    crossmember, middle floor

    • Part Number: 65700-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $204.03

  • 034

    crossmember, r. rr. floor (upper)

    • Part Number: 65740-TR0-A00ZZ

    '


    KA - US - 49 State Spec

    • $154.70

  • 035

    crossmember, rr. floor

    • Part Number: 65750-TR3-A00ZZ

    '


    KA - US - 49 State Spec

    • $127.97

  • 036

    crossmember, l. rr. floor (upper)

    • Part Number: 65790-TR0-A00ZZ

    '


    KA - US - 49 State Spec

    • $156.05

  • 037

    shelf, rr. parcel

    • Part Number: 66500-TX6-A10ZZ

    '


    KA - US - 49 State Spec

    • $173.18

  • 038

    gusset, r. rr. bulkhead

    • Part Number: 66521-TR0-A10ZZ

    '


    KA - US - 49 State Spec

    • $27.82

  • 039

    gusset, l. rr. bulkhead

    • Part Number: 66721-TR0-A10ZZ

    '


    KA - US - 49 State Spec

    • $27.82

  • 040

    bar, rr. floor (lower)

    • Part Number: 74610-TR0-A00

    '


    KA - US - 49 State Spec

    • $49.20

  • 041

    gusset, rr. floor crossmember (upper)

    • Part Number: 74671-TX6-A00

    '


    KA - US - 49 State Spec

    • $29.87

  • 042

    bolt-washer (8x22)

    • Part Number: 90101-SAA-000

    '


    KA - US - 49 State Spec

    • $2.02

  • 043

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 044

    bolt, flange (8x17)

    • Part Number: 90178-TR3-A00

    '


    KA - US - 49 State Spec

    • $0.53

  • 045

    bolt-washer (10x20)

    • Part Number: 93406-10020-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 046

    bolt-washer (8x20)

    • Part Number: 93407-08020-08

    '


    KA - US - 49 State Spec

    • $1.13
