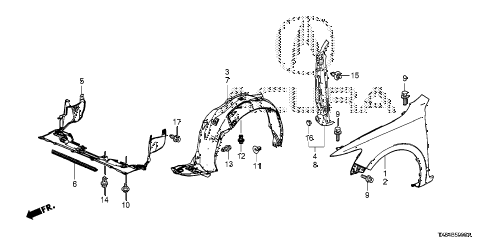

2013 ILX PRE2.4 4 DOOR 6MT FRONT FENDERS diagram
  • 001

    fender, r. fr. (dot)

    • Part Number: 60210-TX6-A90ZZ

    '


    KA - US - 49 State Spec

    • $249.57

  • 002

    fender, l. fr. (dot)

    • Part Number: 60260-TX6-A90ZZ

    '


    KA - US - 49 State Spec

    • $249.57

  • 003

    fender, r. fr. (inner)

    • Part Number: 74101-TX6-A00

    '


    KA - US - 49 State Spec

    • $56.97

  • 004

    enclosure, r. fr. fender

    • Part Number: 74105-TX6-A00

    '


    KA - US - 49 State Spec

    • $13.63

  • 005

    shield, fr. splash

    • Part Number: 74111-TR0-A10

    '


    KA - US - 49 State Spec

    • $22.28

  • 005

    shield, fr. splash

    • Part Number: 74111-TR3-A00

    '


    KA - US - 49 State Spec

    • $22.28

  • 006

    rubber, fr. bulkhead seal (lower)

    • Part Number: 74144-TR0-A01

    '


    KA - US - 49 State Spec

    • $14.03

  • 007

    fender, l. fr. (inner)

    • Part Number: 74151-TX6-A01

    '


    KA - US - 49 State Spec

    • $56.97

  • 008

    enclosure, l. fr. fender

    • Part Number: 74155-TX6-A00

    '


    KA - US - 49 State Spec

    • $13.63

  • 009

    bolt-washer (6x15)

    • Part Number: 90108-SF1-000

    '


    KA - US - 49 State Spec

    • $0.28

  • 010

    bolt, bumper

    • Part Number: 90149-SA0-003

    '


    KA - US - 49 State Spec

    • $3.63

  • 011

    clip, tapping screw (5mm)

    • Part Number: 90682-SEA-003

    '


    KA - US - 49 State Spec

    • $2.12

  • 012

    clip, fender (inner)

    • Part Number: 91501-TR0-003

    '


    KA - US - 49 State Spec

    • $2.47

  • 013

    clip a, bumper

    • Part Number: 91505-S9A-003

    '


    KA - US - 49 State Spec

    • $2.50

  • 015

    clip assy. (8mm)

    • Part Number: 91545-SE0-003

    '


    KA - US - 49 State Spec

    • $4.42

  • 016

    plug, blind (25mm)

    • Part Number: 95551-25000

    '


    KA - US - 49 State Spec

    • $4.05

  • 017

    clip a, bumper

    • Part Number: 91505-S9A-003

    '


    KA - US - 49 State Spec

    • $2.50
