View large diagramHide diagramView diagramView printable catalog

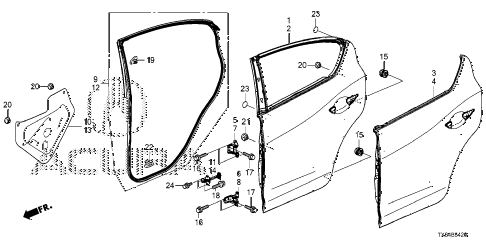

2013 ILX PRE2.4 4 DOOR 6MT REAR DOOR PANELS diagram
  • 001

    panel, r. rr. door (dot)

    • Part Number: 67510-TX6-A90ZZ

    '


    KA - US - 49 State Spec

    • $681.60

  • 002

    panel, l. rr. door (dot)

    • Part Number: 67550-TX6-A90ZZ

    '


    KA - US - 49 State Spec

    • $708.85

  • 003

    skin set, r. rr. door

    • Part Number: 67611-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $263.78

  • 004

    skin set, l. rr. door

    • Part Number: 67651-TX6-305ZZ

    '


    KA - US - 49 State Spec

    • $263.78

  • 005

    hinge, r. rr. door (upper)

    • Part Number: 67910-TX4-H01ZZ

    '


    KA - US - 49 State Spec

    • $25.42

  • 006

    hinge, r. rr. door (lower)

    • Part Number: 67920-TX6-H01ZZ

    '


    KA - US - 49 State Spec

    • $25.42

  • 007

    hinge, l. rr. door (upper)

    • Part Number: 67950-TX4-H01ZZ

    '


    KA - US - 49 State Spec

    • $25.42

  • 008

    hinge, l. rr. door (lower)

    • Part Number: 67960-TX6-H01ZZ

    '


    KA - US - 49 State Spec

    • $25.42

  • 009

    weatherstrip, r. rr. door

    • Part Number: 72810-TX6-A01

    '


    KA - US - 49 State Spec

    • $37.50

  • 010

    seal, r. rr. door hole

    • Part Number: 72821-TX6-A01

    '


    KA - US - 49 State Spec

    • $13.80

  • 011

    checker, r. rr. door

    • Part Number: 72840-TX6-A01

    '


    KA - US - 49 State Spec

    • $14.58

  • 012

    weatherstrip, l. rr. door

    • Part Number: 72850-TX6-A01

    '


    KA - US - 49 State Spec

    • $37.50

  • 013

    seal, l. rr. door hole

    • Part Number: 72861-TX6-A01

    '


    KA - US - 49 State Spec

    • $13.80

  • 014

    checker, l. rr. door

    • Part Number: 72880-TX6-A01

    '


    KA - US - 49 State Spec

    • $14.58

  • 015

    stopper, door

    • Part Number: 75891-SA7-000

    '


    KA - US - 49 State Spec

    • $2.22

  • 016

    bolt, flange (8x24.5) (10.5mm)

    • Part Number: 90102-S3N-003

    '


    KA - US - 49 State Spec

    • $0.87

  • 016

    bolt, flange (8x18) (service)

    • Part Number: 90102-SFA-305

    '


    KA - US - 49 State Spec

    • $2.43

  • 017

    bolt, flange (8x22) (torx)

    • Part Number: 90103-SLA-000

    '


    KA - US - 49 State Spec

    • $1.03

  • 018

    bolt, flange (8x22)

    • Part Number: 90141-S04-000

    '


    KA - US - 49 State Spec

    • $1.17

  • 019

    clip, panel

    • Part Number: 90651-TA0-003

    '


    KA - US - 49 State Spec

    • $0.27

  • 020

    grommet (11mm)

    • Part Number: 90811-SNA-003

    '


    KA - US - 49 State Spec

    • $0.28

  • 021

    grommet (20mm)

    • Part Number: 90820-SNA-003

    '


    KA - US - 49 State Spec

    • $0.33

  • 022

    clip, door weatherstrip

    • Part Number: 91568-TR0-003

    '


    KA - US - 49 State Spec

    • $1.55

  • 023

    seal c, door panel hole (25mm)

    • Part Number: 91657-SP0-000

    '


    KA - US - 49 State Spec

    • $1.23

  • 024

    bolt-washer (6x16)

    • Part Number: 93405-06016-08

    '


    KA - US - 49 State Spec

    • $1.02

Back to Top
panel, r. rr. door (dot)panel, l. rr. door (dot)skin set, r. rr. doorskin set, l. rr. doorhinge, r. rr. door (upper)hinge, r. rr. door (lower)hinge, l. rr. door (upper)hinge, l. rr. door (lower)weatherstrip, r. rr. doorseal, r. rr. door holechecker, r. rr. doorweatherstrip, l. rr. doorseal, l. rr. door holechecker, l. rr. doorstopper, doorstopper, doorbolt, flange (8x24.5) (10.5mm)bolt, flange (8x24.5) (10.5mm)bolt, flange (8x18) (service)bolt, flange (8x18) (service)bolt, flange (8x22) (torx)bolt, flange (8x22) (torx)bolt, flange (8x22)clip, panelgrommet (11mm)grommet (11mm)grommet (11mm)grommet (20mm)clip, door weatherstripseal c, door panel hole (25mm)seal c, door panel hole (25mm)bolt-washer (6x16)
