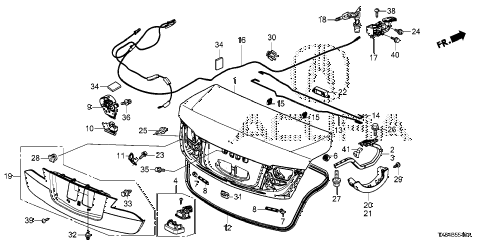

2013 ILX PRE2.4 4 DOOR 6MT TRUNK LID diagram
  • 001

    lid, trunk (dot)

    • Part Number: 68500-TX6-A80ZZ

    '


    KA - US - 49 State Spec

    • $474.74

  • 002

    hinge, r. trunk

    • Part Number: 68610-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $91.25

  • 003

    hinge, l. trunk

    • Part Number: 68660-TX6-A00ZZ

    '


    KA - US - 49 State Spec

    • $91.25

  • 006

    cushion, trunk hinge

    • Part Number: 74822-SNW-003

    '


    KA - US - 49 State Spec

    • $2.63

  • 007

    stopper, trunk lid

    • Part Number: 74829-S84-A00

    '


    KA - US - 49 State Spec

    • $2.75

  • 008

    stopper, trunk lid (lower)

    • Part Number: 74829-TA0-A00

    '


    KA - US - 49 State Spec

    • $11.77

  • 009

    lock assy., trunk

    • Part Number: 74851-TX6-A01

    '


    KA - US - 49 State Spec

    • $45.42

  • 010

    cover, trunk lock

    • Part Number: 74852-TA0-901

    '


    KA - US - 49 State Spec

    • $3.98

  • 011

    striker, trunk

    • Part Number: 74862-TA0-003

    '


    KA - US - 49 State Spec

    • $3.90

  • 012

    weatherstrip, trunk lid

    • Part Number: 74865-TX6-A01

    '


    KA - US - 49 State Spec

    • $26.00

  • 013

    spring, r. trunk open

    • Part Number: 74871-TX6-A00

    '


    KA - US - 49 State Spec

    • $11.30

  • 014

    spring, l. trunk open

    • Part Number: 74872-TX6-A01

    '


    KA - US - 49 State Spec

    • $11.18

  • 015

    clip, trunk opener spring

    • Part Number: 74873-S30-013

    '


    KA - US - 49 State Spec

    • $4.65

  • 016

    cable, trunk & fuel lid opener

    • Part Number: 74880-TX6-A01

    '


    KA - US - 49 State Spec

    • $24.82

  • 017

    opener assy., trunk & fuel lid*nh690l*

    • Part Number: 74882-TR0-A01ZF

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $11.70

  • 018

    cylinder, trunk remote control

    • Part Number: 74886-SNR-A01

    '


    KA - US - 49 State Spec

    • $42.52

  • 019

    garnish assy., trunk (lower) *nh731p*

    • Part Number: 74895-TX6-A21ZF

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $230.65

  • 019

    garnish assy., trunk (lower) *nh737m*

    • Part Number: 74895-TX6-A21ZM

    (POLISHED METAL METALLIC)

    '


    KA - US - 49 State Spec

    • $210.83

  • 019

    garnish assy., trunk (lower) *nh788p*

    • Part Number: 74895-TX6-A22ZD

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $230.65

  • 019

    garnish assy., trunk (lower) *nh700m*

    • Part Number: 74895-TX6-A22ZG

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $230.65

  • 019

    garnish assy., trunk (lower) *b576p*

    • Part Number: 74895-TX6-A22ZH

    (STILL NIGHT PEARL)

    '


    KA - US - 49 State Spec

    • $230.65

  • 019

    garnish assy., trunk (lower) *r543p*

    • Part Number: 74895-TX6-A22ZL

    (CARNELIAN RED PEARL)

    '


    KA - US - 49 State Spec

    • $230.65

  • 020

    garnish assy., r. trunk hinge

    • Part Number: 74896-TX6-A01

    '


    KA - US - 49 State Spec

    • $8.47

  • 021

    garnish assy., l. trunk hinge

    • Part Number: 74897-TX6-A01

    '


    KA - US - 49 State Spec

    • $8.47

  • 022

    damper, trunk dynamic

    • Part Number: 74899-TX6-A01

    '


    KA - US - 49 State Spec

    • $23.32

  • 023

    bolt-washer (6x16)

    • Part Number: 90101-TA0-000

    '


    KA - US - 49 State Spec

    • $0.85

  • 024

    bolt, special (6mm)

    • Part Number: 90102-SNA-000

    '


    KA - US - 49 State Spec

    • $0.65

  • 025

    bolt-washer (5x12)

    • Part Number: 90102-STK-A00

    '


    KA - US - 49 State Spec

    • $0.62

  • 026

    bolt, flange (6x15)

    • Part Number: 90108-S0A-003

    '


    KA - US - 49 State Spec

    • $0.30

  • 027

    bolt, special (6x35)

    • Part Number: 90109-SM4-000

    '


    KA - US - 49 State Spec

    • $2.83

  • 028

    nut, garnish (m5)

    • Part Number: 90308-SZW-003

    '


    KA - US - 49 State Spec

    • $3.15

  • 029

    clip, trim (7mm) *nh167l*

    • Part Number: 90667-S0D-003ZH

    (GRAPHITE BLACK)

    '


    KA - US - 49 State Spec

    • $0.20

  • 030

    clip, fuel lid opener

    • Part Number: 90684-SD4-003

    '


    KA - US - 49 State Spec

    • $0.35

  • 031

    plug, tailgate drain

    • Part Number: 90856-S6M-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 032

    clip, rr. license garnish

    • Part Number: 91560-SDA-A01

    '


    KA - US - 49 State Spec

    • $0.83

  • 033

    clip, door end garnish (light brown)(seal)

    • Part Number: 91560-TL0-G21

    '


    KA - US - 49 State Spec

    • $2.88

  • 034

    plaster, wire harness (50x100)

    • Part Number: 91902-S2X-003

    '


    KA - US - 49 State Spec

    • $2.23

  • 035

    bolt-washer (6x16)

    • Part Number: 93401-06016-08

    '


    KA - US - 49 State Spec

    • $0.88

  • 036

    bolt-washer (6x12)

    • Part Number: 93403-06012-08

    '


    KA - US - 49 State Spec

    • $0.93

  • 038

    screw, tapping (4x16)

    • Part Number: 93903-44480

    '


    KA - US - 49 State Spec

    • $0.55

  • 039

    screw, tapping (5x16) (po)

    • Part Number: 93913-15420

    '


    KA - US - 49 State Spec

    • $0.55

  • 040

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
