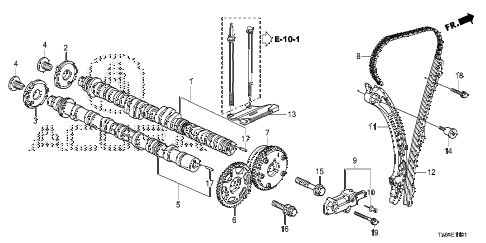

2013 ILX PRE2.4 4 DOOR 6MT CAMSHAFT - CAM CHAIN (2) diagram
Back to Top
camshaft, in.plate, cam pulseplate, tdc pulsebolt, sealing (14mm)bolt, sealing (14mm)camshaft, ex.sprocket, cam chain driven (46t)actuator assy., vtc (46t)chain (176l) (daido)tensioner, cam chainstopper (tool)arm, cam chain tensionerguide, cam chainguide b, cam chainbolt, tensioner pivotbolt, flange (12x47)bolt, flange (10x32)pin, dowel (4.2x10.3)pin, dowel (4.2x10.3)bolt, flange (6x20)bolt, flange (6x30)
