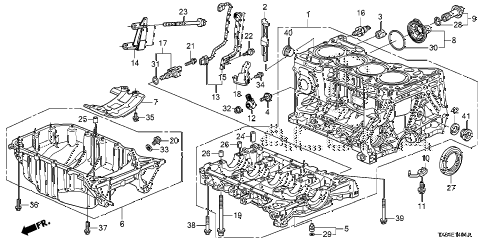

2013 ILX PRE2.4 4 DOOR 6MT CYLINDER BLOCK - OIL PAN (2) diagram
Back to Top
block assy., cylinder (dot)plate, partitionbolt, sealing (18mm)bolt, knock sensororifice assy., block (lower)pan assy., oilplate a, bafflecap, oil gallerybolt, gallery capbody, oil jetbolt, oil jetsensor, knocksub-wire, crank sensorinsulator, crank sub-harness heatholder, crank sub-wireswitch assy., oil pressuresensor assy., crankcover, crank sensorbolt-washer (11x95)bolt, plug (14mm)bolt, special (6x20.5) (guide)bolt, special (6x20.8)bolt, flange (12x100)pin, dowel (18x22)pin, dowel (13x20)pin, dowel (13x14)pin, dowel (13x14)oil seal (80x98x10)o-ring (32x2.4)o-ring (6.8x1.9)o-ring (62.4x3.1)o-ring (15x1.9)nut, flange (8mm)washer, drain plug (14mm)bolt, flange (6x14)bolt, flange (6x18)bolt, flange (6x30)bolt, flange (6x32)bolt, flange (8x35)bolt, flange (8x50)bolt, sealing (20mm)bolt, sealing (28mm)washer, sealing (28mm)
