CONTROL UNIT (ENGINE ROOM) (1)
View large diagramHide diagramView diagramView printable catalogTranslate

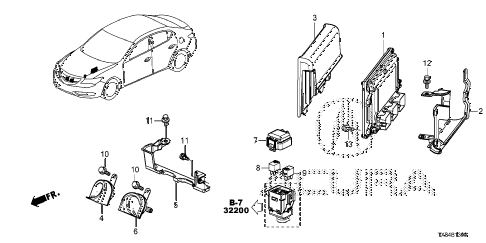

2013 ILX BASE 4 DOOR CVT CONTROL UNIT (ENGINE ROOM) (1) diagram

  • 001

    control module, powertrain (rewritable)

    Part Number: 37820-R9C-L82

    ''


    KL - California Spec

    Contact your dealer

  • 002

    bracket, engine control module

    Part Number: 37821-RW0-A00

    ''


    KL - California Spec

    • $20.69

  • 003

    cover, engine control module

    Part Number: 37823-RNA-A00

    ''


    KL - California Spec

    • $23.47

  • 004

    horn assy. (low)

    Part Number: 38100-TP6-A01

    ''


    KL - California Spec

    • $18.00

  • 005

    cover, horn

    Part Number: 38102-TX6-A01

    ''


    KL - California Spec

    • $3.37

  • 006

    horn assy. (high)

    Part Number: 38150-TP6-A01

    ''


    KL - California Spec

    • $19.23

  • 007

    cover, relay block (upper)

    Part Number: 38183-TX6-003

    ''


    KL - California Spec

    • $8.72

  • 008

    relay assy., power (micro iso)(omron)

    Part Number: 39794-SDA-A03

    ''


    KL - California Spec

    • $19.18

  • 010

    bolt, ground (8x16)

    Part Number: 90150-S84-003

    ''


    KL - California Spec

    • $0.93

  • 011

    clip, fender (inner)

    Part Number: 91501-TR0-003

    ''


    KL - California Spec

    • $2.57

  • 012

    bolt-washer (6x16)

    Part Number: 93403-06016-08

    ''


    KL - California Spec

    • $1.05

  • 013

    bolt, flange (6x16)

    Part Number: 95701-06016-08

    ''


    KL - California Spec

    • $0.92
