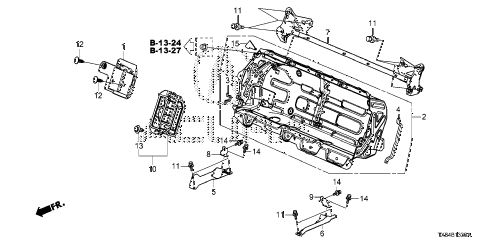

View large diagramHide diagramView diagramView printable catalog
  • 001

    insulator assy., pcu

    • Part Number: 1B770-RW0-000

    '


    KL - California Spec

    • $25.58

  • 002

    case, ipu

    • Part Number: 1B810-RW0-010

    '


    KL - California Spec

    • $172.45

  • 003

    seal, wire harness

    • Part Number: 1B824-RW0-300

    '


    KL - California Spec

    • $3.57

  • 004

    seal, inlet duct

    • Part Number: 1B825-RW0-300

    '


    KL - California Spec

    • $4.98

  • 005

    frame, r. ipu

    • Part Number: 1B850-RW0-000

    '


    KL - California Spec

    • $15.95

  • 006

    frame, l. ipu

    • Part Number: 1B860-RW0-000

    '


    KL - California Spec

    • $15.95

  • 007

    frame, ipu

    • Part Number: 1B870-RW0-010

    '


    KL - California Spec

    • $96.12

  • 008

    stay, r. ipu case

    • Part Number: 1B880-RW0-000

    '


    KL - California Spec

    • $6.25

  • 009

    stay, l. ipu case

    • Part Number: 1B890-RMX-000

    '


    KL - California Spec

    • $6.03

  • 010

    duct assy., middle

    • Part Number: 1J650-RW0-003

    '


    KL - California Spec

    • $49.03

  • 011

    bolt-washer (8mm)

    • Part Number: 90101-S6A-000

    '


    KL - California Spec

    • $2.55

  • 012

    clip, dust seal cover

    • Part Number: 90665-S5A-013

    '


    KL - California Spec

    • $1.75

  • 013

    clip, pillar garnish (red)

    • Part Number: 91560-SAA-003

    '


    KL - California Spec

    • $1.88

  • 014

    bolt-washer (8x16)

    • Part Number: 93405-08016-08

    '


    KL - California Spec

    • $1.13

Back to Top
insulator assy., pcucase, ipuseal, wire harnessseal, inlet ductframe, r. ipuframe, l. ipuframe, ipustay, r. ipu casestay, l. ipu caseduct assy., middlebolt-washer (8mm)bolt-washer (8mm)bolt-washer (8mm)bolt-washer (8mm)clip, dust seal coverclip, dust seal coverclip, pillar garnish (red)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x16)bolt-washer (8x16)
