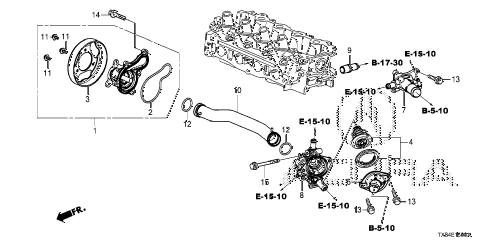

2013 ILX BASE 4 DOOR CVT WATER PUMP diagram
Back to Top
water pump assy.gasket, water pumppulley, water pumpthermostat assy. (nippon thermostat)rubber, thermostat mountingcover, thermostatcover, water outletcase, thermostatjoint, tubepipe, connectingbolt, special (6x12)bolt, special (6x12)bolt, special (6x12)o-ring (31.2x4.1) (nok)o-ring (31.2x4.1) (nok)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x20)bolt, flange (6x25)bolt, flange (6x45)
