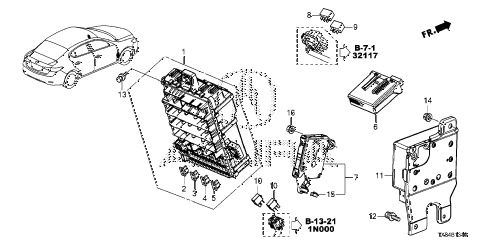

2013 ILX TECH 4 DOOR CVT CONTROL UNIT (CABIN) (1) diagram
Back to Top
box assy., fuse (rewritable)fuse, blade (7.5a)fuse, blade (10a)fuse, blade (15a)fuse, blade (20a)tpms unithft unit (bluetooth)relay assy., power (micro iso)(omron)relay assy., power (micro iso)(mitsuba)relay assy., power (micro iso)(mitsuba)eps unitbolt-washer (6x14)bolt-washer (6x25)nut, paint cutting (6mm)nut, paint cutting (6mm)clip, snap fitting (yellow)nut, paint cutting (6mm)nut, paint cutting (6mm)
