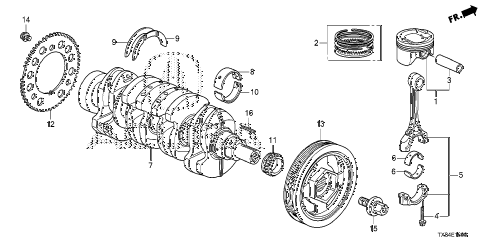

2013 ILX TECH 4 DOOR CVT CRANKSHAFT - PISTON diagram
Back to Top
piston set (std)piston set (over size) (0.25)ring set, piston (std) (riken)ring set, piston (over size) (0.25) (riken)pin, pistonbolt, connecting rodrod, connectingbearing a, connecting rod (blue) (daido)bearing a, connecting rod (blue) (daido)bearing b, connecting rod (black) (daido)bearing b, connecting rod (black) (daido)bearing c, connecting rod (brown) (daido)bearing c, connecting rod (brown) (daido)bearing d, connecting rod (green) (daido)bearing d, connecting rod (green) (daido)bearing e, connecting rod (yellow) (daido)bearing e, connecting rod (yellow) (daido)bearing f, connecting rod (pink) (daido)bearing f, connecting rod (pink) (daido)bearing g, connecting rod (red) (daido)bearing g, connecting rod (red) (daido)crankshaftbearing a, main (upper) (blue)(daido)bearing b, main (upper) (black) (daido)bearing c, main (upper) (brown) (daido)bearing d, main (upper) (green) (daido)bearing e, main (upper) (yellow) (daido)bearing f, main (upper) (pink)(daido)bearing g, main (upper) (red) (daido)washer, thrust (daido)washer, thrust (daido)washer, thrust (taiho)washer, thrust (taiho)bearing a, main (lower) (blue)(daido)bearing b, main (lower) (black) (daido)bearing c, main (lower) (brown) (daido)bearing d, main (lower) (green) (daido)bearing e, main (lower) (yellow) (daido)bearing f, main (lower) (pink)(daido)bearing g, main (lower) (red) (daido)sprocket, cam chain drive (23t)plate, crank pulserpulley, crankshaftbolt, special (8x9)bolt-washer (14x36)key, special
