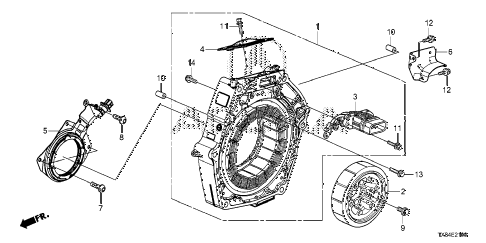

2013 ILX TECH 4 DOOR CVT IMA MOTOR diagram
  • 001

    housing assy.

    • Part Number: 1A200-RW0-000

    '


    KL - California Spec

    • $1,219.95

  • 002

    rotor

    • Part Number: 1A300-RW0-000

    '


    KL - California Spec

    • $1,156.08

  • 003

    cable assy., motor

    • Part Number: 1A460-RW0-003

    '


    KL - California Spec

    • $176.75

  • 004

    cover, terminal

    • Part Number: 1A511-RW0-000

    '


    KL - California Spec

    • $6.02

  • 005

    sensor, resolver

    • Part Number: 1A810-RW0-004

    '


    KL - California Spec

    • $343.38

  • 006

    insulator, heat resolver

    • Part Number: 1A851-RW0-000

    '


    KL - California Spec

    • $8.78

  • 007

    bolt, special (8x22)

    • Part Number: 90005-RMX-000

    '


    KL - California Spec

    • $4.52

  • 008

    bolt, special (8x15)

    • Part Number: 90006-RMX-000

    '


    KL - California Spec

    • $4.07

  • 009

    bolt, flange (12mm)

    • Part Number: 90011-PH3-000

    '


    KL - California Spec

    • $5.45

  • 010

    pin, dowel (14x28)

    • Part Number: 90701-RW0-000

    '


    KL - California Spec

    • $2.50

  • 011

    bolt-washer (6x20)

    • Part Number: 93401-06020-08

    '


    KL - California Spec

    • $1.02

  • 012

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KL - California Spec

    • $1.00

  • 013

    bolt, flange (6x20)

    • Part Number: 95701-06020-08

    '


    KL - California Spec

    • $0.22

  • 014

    bolt, flange (6x12) (for busbar)

    • Part Number: 90007-PZA-000

    '


    KL - California Spec

    • $1.80
