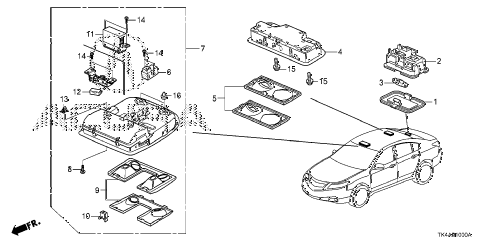

2013 TL ADV 4 DOOR 6AT INTERIOR LIGHT diagram
  • 001

    lens

    • Part Number: 34261-TK4-A01

    '


    KA - US - 49 State Spec

    • $4.77

  • 002

    base

    • Part Number: 34262-TK4-A01

    '


    KA - US - 49 State Spec

    • $14.22

  • 003

    bulb (12v 5w.k)

    • Part Number: 34295-SD4-003

    '


    KA - US - 49 State Spec

    • $3.08

  • 004

    base *nh556l*

    • Part Number: 34403-TK4-A11ZA

    (GRAY)

    '


    KA - US - 49 State Spec

    • $55.63

  • 004

    base *yr372l*

    • Part Number: 34403-TK4-A11ZB

    (PREMIUM IVORY)

    '


    KA - US - 49 State Spec

    • $55.63

  • 005

    lens

    • Part Number: 34404-TK4-A11

    '


    KA - US - 49 State Spec

    • $8.58

  • 006

    switch assy., sunroof *nh690l*

    • Part Number: 35830-STX-A11ZA

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $23.75

  • 007

    console assy., roof *nh556l*

    • Part Number: 36600-TK4-A12ZD

    (GRAY)

    '


    KA - US - 49 State Spec

    • $420.83

  • 007

    console assy., roof *yr372l*

    • Part Number: 36600-TK4-A12ZE

    (PREMIUM IVORY)

    '


    KA - US - 49 State Spec

    • $420.83

  • 008

    screw, tapping

    • Part Number: 36601-TK4-A01

    '


    KA - US - 49 State Spec

    • $0.18

  • 009

    lens assy.

    • Part Number: 36602-TK4-A01

    '


    KA - US - 49 State Spec

    • $5.00

  • 010

    latch

    • Part Number: 36603-TK4-A01

    '


    KA - US - 49 State Spec

    • $9.20

  • 011

    microphone assy.

    • Part Number: 39180-TA0-A01

    '


    KA - US - 49 State Spec

    • $376.93

  • 013

    clip

    • Part Number: 83251-TK4-A01

    '


    KA - US - 49 State Spec

    • $2.20

  • 014

    screw

    • Part Number: 83255-SEP-A01

    '


    KA - US - 49 State Spec

    • $0.60

  • 015

    bolt, ground (5x14)

    • Part Number: 90148-S6A-013

    '


    KA - US - 49 State Spec

    • $1.82

  • 016

    clip, pillar garnish (red)

    • Part Number: 91560-SAA-003

    '


    KA - US - 49 State Spec

    • $1.88
