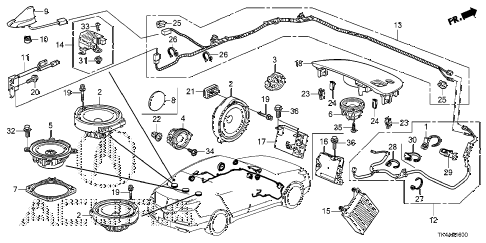

2013 TL ADV 4 DOOR 6AT RADIO ANTENNA - SPEAKER diagram
  • 001

    band, harness offset (10) (122.5mm) (brown)

    • Part Number: 32134-SM4-003

    '


    KA - US - 49 State Spec

    • $1.78

  • 002

    speaker assy. (17cm) (panasonic)

    • Part Number: 39120-TK4-A51

    '


    KA - US - 49 State Spec

    • $34.93

  • 003

    speaker assy., tweeter (els) (panasonic)

    • Part Number: 39120-TK4-A21

    '


    KA - US - 49 State Spec

    • $30.02

  • 004

    speaker assy., rr. door (8cm) (panasonic)

    • Part Number: 39120-TK4-A11

    '


    KA - US - 49 State Spec

    • $36.78

  • 005

    speaker assy., woofer (20cm) (panasonic)

    • Part Number: 39120-TK4-A62

    '


    KA - US - 49 State Spec

    • $130.20

  • 006

    speaker assy., center (8cm) (panasonic)

    • Part Number: 39120-TK4-A71

    '


    KA - US - 49 State Spec

    • $35.87

  • 007

    bracket, speaker seal (20cm)

    • Part Number: 39121-TK4-A00

    '


    KA - US - 49 State Spec

    • $5.08

  • 009

    antenna assy., xm *nh731p*

    • Part Number: 39150-TK4-A01ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $52.97

  • 009

    antenna assy., xm *nh788p*

    • Part Number: 39150-TK4-A01ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $43.38

  • 009

    antenna assy., xm *nh782m*

    • Part Number: 39150-TK4-A01ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $43.38

  • 009

    antenna assy., xm *nh700m*

    • Part Number: 39150-TK4-A01ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $41.20

  • 009

    antenna assy., xm *r548p*

    • Part Number: 39150-TK4-A01ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $41.20

  • 009

    antenna assy., xm *b588p*

    • Part Number: 39150-TK4-A01ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $41.20

  • 010

    nut assy., antenna

    • Part Number: 39153-TA0-A01

    '


    KA - US - 49 State Spec

    • $4.47

  • 011

    module unit, antenna

    • Part Number: 39155-TK4-A01

    '


    KA - US - 49 State Spec

    • $133.13

  • 012

    sub-feeder assy., antenna

    • Part Number: 39156-TK4-A10

    '


    KA - US - 49 State Spec

    • $21.90

  • 013

    feeder assy., antenna

    • Part Number: 39160-TK4-A00

    '


    KA - US - 49 State Spec

    • $28.60

  • 014

    coil assy., glass antenna (sub)

    • Part Number: 39166-TK4-A01

    '


    KA - US - 49 State Spec

    • $95.35

  • 015

    amplifier assy., audio (els)

    • Part Number: 39186-TK4-A12

    '


    KA - US - 49 State Spec

    • $446.23

  • 017

    xm unit (hip)

    • Part Number: 39820-TK4-A41

    '


    KA - US - 49 State Spec

    • $1,240.85

  • 017

    xm unit (rmd) (hip) (honda information platform)

    • Part Number: 39820-TK4-A41CP

    '


    KA - US - 49 State Spec

    • $395.79

  • 017

    xm unit (hip)(rmd)(warranty only)

    • Part Number: 39820-TK4-A41RM

    '


    KA - US - 49 State Spec

    • $395.79

  • 018

    lid, center speaker *nh690l*

    • Part Number: 77131-TK4-A01ZA

    (PREMIUM BLACK)

    '


    KA - US - 49 State Spec

    • $21.08

  • 019

    screw (5x40)

    • Part Number: 90109-SLJ-003

    '


    KA - US - 49 State Spec

    • $1.98

  • 020

    bolt, ground (6x16) (washer 12.5mm) (zn)

    • Part Number: 90148-SE0-003

    '


    KA - US - 49 State Spec

    • $4.77

  • 021

    nut assy., speaker

    • Part Number: 90309-SLJ-003

    '


    KA - US - 49 State Spec

    • $5.05

  • 022

    grommet, screw (5mm)

    • Part Number: 90664-STK-A01

    '


    KA - US - 49 State Spec

    • $0.17

  • 023

    clip, snap fitting (po)(natural)

    • Part Number: 90666-SDA-A01

    '


    KA - US - 49 State Spec

    • $0.50

  • 024

    clip, snap fitting (po)(orange)

    • Part Number: 90666-TA0-A21

    '


    KA - US - 49 State Spec

    • $2.05

  • 025

    clip, connector (black)

    • Part Number: 91533-S82-003

    '


    KA - US - 49 State Spec

    • $3.37

  • 026

    clip, harness band (96.9mm) (natural)

    • Part Number: 91540-S0A-003

    '


    KA - US - 49 State Spec

    • $4.00

  • 027

    clip, harness band (155.3mm) (black)

    • Part Number: 91540-STK-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 028

    clip, harness band (164.5mm) (dark blue)

    • Part Number: 91542-SNA-003

    '


    KA - US - 49 State Spec

    • $0.25

  • 029

    strap, harness (30) (107.5mm) (black)

    • Part Number: 91558-SJ6-003

    '


    KA - US - 49 State Spec

    • $2.17

  • 031

    grommet, screw (5mm)

    • Part Number: 91660-SG7-003

    '


    KA - US - 49 State Spec

    • $2.88

  • 032

    bolt-washer (6x28)

    • Part Number: 93403-06028-08

    '


    KA - US - 49 State Spec

    • $1.20

  • 033

    screw, tapping (5x12)

    • Part Number: 93901-25220

    '


    KA - US - 49 State Spec

    • $0.55

  • 034

    screw, tapping (5x16)

    • Part Number: 93904-45320

    '


    KA - US - 49 State Spec

    • $0.52

  • 035

    screw, tapping (4x10)

    • Part Number: 93913-14120

    '


    KA - US - 49 State Spec

    • $0.55

  • 036

    bolt, flange (6x12)

    • Part Number: 95701-06012-08

    '


    KA - US - 49 State Spec

    • $1.00
