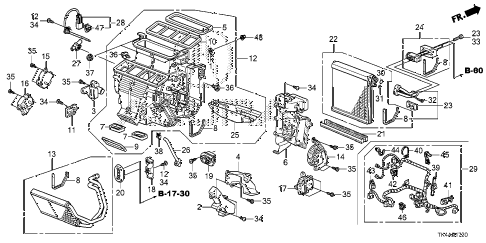

  • 001

    gasket, heater

    • Part Number: 39248-692-003

    '


    KA - US - 49 State Spec

    • $1.92

  • 002

    cover, heater core

    • Part Number: 79021-TK4-A41

    '


    KA - US - 49 State Spec

    • $1.53

  • 003

    duct assy., driver heater

    • Part Number: 79022-TK4-A41

    '


    KA - US - 49 State Spec

    • $1.07

  • 004

    duct assy., passenger heater

    • Part Number: 79023-TK4-A41

    '


    KA - US - 49 State Spec

    • $2.02

  • 005

    gasket, defroster duct

    • Part Number: 79024-TK4-A41

    '


    KA - US - 49 State Spec

    • $1.47

  • 006

    joint, duct

    • Part Number: 79025-TK4-A41

    '


    KA - US - 49 State Spec

    • $18.28

  • 007

    gasket, foot duct

    • Part Number: 79026-TK4-A41

    '


    KA - US - 49 State Spec

    • $3.38

  • 008

    seal a

    • Part Number: 79027-TK4-A41

    '


    KA - US - 49 State Spec

    • $28.53

  • 009

    gasket, rr. face

    • Part Number: 79030-TK4-A41

    '


    KA - US - 49 State Spec

    • $0.68

  • 010

    gasket, opening duct

    • Part Number: 79031-TK4-A41

    '


    KA - US - 49 State Spec

    • $17.83

  • 011

    bracket, driver carpet panel

    • Part Number: 79033-TK4-A00

    '


    KA - US - 49 State Spec

    • $47.18

  • 012

    heater sub-assy.

    • Part Number: 79106-TK4-A42

    '


    KA - US - 49 State Spec

    • $99.60

  • 013

    core sub-assy., heater

    • Part Number: 79115-TK4-A41

    '


    KA - US - 49 State Spec

    • $129.57

  • 014

    motor assy., passenger mode

    • Part Number: 79130-TK4-A41

    '


    KA - US - 49 State Spec

    • $98.40

  • 015

    motor assy., driver mode

    • Part Number: 79140-TK4-A41

    '


    KA - US - 49 State Spec

    • $35.40

  • 016

    motor assy., driver temperature

    • Part Number: 79160-TK4-A41

    '


    KA - US - 49 State Spec

    • $32.12

  • 017

    motor assy., temperature (passenger)

    • Part Number: 79170-TK4-A41

    '


    KA - US - 49 State Spec

    • $26.02

  • 018

    clamp, heater pipe

    • Part Number: 79191-TK4-A41

    '


    KA - US - 49 State Spec

    • $12.48

  • 019

    transistor, power

    • Part Number: 79330-SJK-941

    '


    KA - US - 49 State Spec

    • $77.22

  • 020

    grommet, heater pipe

    • Part Number: 79731-TK4-A00

    '


    KA - US - 49 State Spec

    • $6.87

  • 021

    plate, evaporator (lower)

    • Part Number: 80203-TK4-A41

    '


    KA - US - 49 State Spec

    • $39.03

  • 022

    evaporator sub-assy.

    • Part Number: 80215-TK4-A41

    '


    KA - US - 49 State Spec

    • $179.28

  • 023

    pipe sub-assy.

    • Part Number: 80216-TK4-A41

    '


    KA - US - 49 State Spec

    • $69.88

  • 024

    valve sub-assy., expansion

    • Part Number: 80221-TK4-A41

    '


    KA - US - 49 State Spec

    • $63.40

  • 025

    insulator, evaporator (lower)

    • Part Number: 80225-TK4-A41

    '


    KA - US - 49 State Spec

    • $489.58

  • 026

    hose, drain

    • Part Number: 80271-TK4-A00

    '


    KA - US - 49 State Spec

    • $5.08

  • 027

    aspirator

    • Part Number: 80534-S84-A41

    '


    KA - US - 49 State Spec

    • $9.33

  • 028

    thermistor, air conditioner

    • Part Number: 80560-SJA-A01

    '


    KA - US - 49 State Spec

    • $15.67

  • 029

    sub-harness, air conditioner

    • Part Number: 80650-TK4-A00

    '


    KA - US - 49 State Spec

    • $103.53

  • 030

    o-ring (5/8")

    • Part Number: 80871-SN7-003

    '


    KA - US - 49 State Spec

    • $3.32

  • 031

    o-ring (1/2")

    • Part Number: 80872-SN7-003

    '


    KA - US - 49 State Spec

    • $3.32

  • 032

    bolt, socket (5x40)

    • Part Number: 90125-SDG-W01

    '


    KA - US - 49 State Spec

    • $1.17

  • 033

    bolt, socket (5x40)

    • Part Number: 90126-S5J-M01

    '


    KA - US - 49 State Spec

    • $2.53

  • 034

    screw, tapping (4x16)

    • Part Number: 90127-SX0-003

    '


    KA - US - 49 State Spec

    • $1.80

  • 035

    screw, tapping (4x16)

    • Part Number: 90127-S84-003

    '


    KA - US - 49 State Spec

    • $1.33

  • 036

    screw-washer (4x16)

    • Part Number: 90133-SR3-003

    '


    KA - US - 49 State Spec

    • $1.95

  • 037

    nut-washer (6mm) (paint cutting)

    • Part Number: 90321-SV4-003

    '


    KA - US - 49 State Spec

    • $2.78

  • 038

    clip, drain hose

    • Part Number: 90661-TK4-A01

    '


    KA - US - 49 State Spec

    • $1.37

  • 039

    clip, wire harness (70mm) (natural)

    • Part Number: 91507-SAA-003

    '


    KA - US - 49 State Spec

    • $4.22

  • 040

    clip, harness band (145mm) (natural)

    • Part Number: 91531-SDA-003

    '


    KA - US - 49 State Spec

    • $3.03

  • 041

    clip, wire harness (44mm) (natural)

    • Part Number: 91531-S04-003

    '


    KA - US - 49 State Spec

    • $3.05

  • 042

    clip, connector (natural)

    • Part Number: 91533-STK-003

    '


    KA - US - 49 State Spec

    • $3.22

  • 043

    clip, connector (dark gray)

    • Part Number: 91534-SWA-003

    '


    KA - US - 49 State Spec

    • $4.80

  • 044

    clip, harness band (100.1mm) (natural)

    • Part Number: 91540-TA0-003

    '


    KA - US - 49 State Spec

    • $0.12

  • 045

    clip, band (6mm boss) (127mm) (natural)

    • Part Number: 91548-SV4-003

    '


    KA - US - 49 State Spec

    • $4.58

  • 046

    clip, harness band (140.3mm) (black)

    • Part Number: 91549-TA0-003

    '


    KA - US - 49 State Spec

    • $0.57

  • 047

    clip, connector (orange)

    • Part Number: 91580-SM4-003

    '


    KA - US - 49 State Spec

    • $4.10

  • 048

    nut-washer (8mm)

    • Part Number: 94071-08080

    '


    KA - US - 49 State Spec

    • $0.82
