REAR SHOCK ABSORBER
View large diagramHide diagramView diagramView printable catalogTranslate

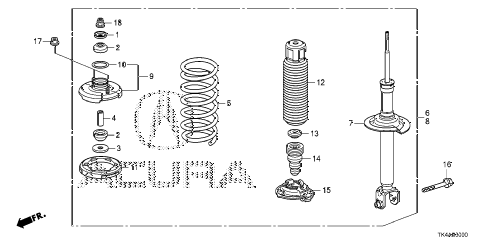

2013 TL ADV 4 DOOR 6AT REAR SHOCK ABSORBER diagram

  • 001

    washer, shock absorber mounting

    Part Number: 51621-S84-A01

    ''


    KA - US - 49 State Spec

    • $0.70

  • 002

    rubber, shock absorber mounting (showa)

    Part Number: 51631-SV7-004

    ''


    KA - US - 49 State Spec

    • $2.80

  • 003

    plate, dust cover (showa)

    Part Number: 51685-SR0-004

    ''


    KA - US - 49 State Spec

    • $3.55

  • 004

    collar, shock absorber mounting (duffy steel parts)

    Part Number: 51728-SR0-003

    ''


    KA - US - 49 State Spec

    • $1.03

  • 005

    spring, rr.

    Part Number: 52441-TK4-A02

    ''


    KA - US - 49 State Spec

    • $42.17

  • 006

    shock absorber assy., r. rr.

    Part Number: 52610-TK4-A03

    ''


    KA - US - 49 State Spec

    • $265.82

  • 007

    shock absorber unit, rr.

    Part Number: 52611-TK4-A02

    ''


    KA - US - 49 State Spec

    • $175.50

  • 008

    shock absorber assy., l. rr.

    Part Number: 52620-TK4-A03

    ''


    KA - US - 49 State Spec

    • $265.82

  • 009

    base, rr. shock absorber mounting

    Part Number: 52675-SEP-A02

    ''


    KA - US - 49 State Spec

    • $36.98

  • 010

    seal, rr. shock absorber mounting

    Part Number: 52676-SEP-A01

    ''


    KA - US - 49 State Spec

    • $11.60

  • 011

    rubber, rr. spring mounting

    Part Number: 52686-SDA-A01

    ''


    KA - US - 49 State Spec

    • $7.55

  • 012

    cover, dust

    Part Number: 52687-TA0-A01

    ''


    KA - US - 49 State Spec

    • $14.80

  • 013

    plate, bump stop

    Part Number: 52690-SG0-000

    ''


    KA - US - 49 State Spec

    • $1.27

  • 014

    rubber, rr. bump stop

    Part Number: 52722-TK4-A01

    ''


    KA - US - 49 State Spec

    • $7.87

  • 015

    cover, rr. mount dust (lower)

    Part Number: 52748-S0A-004

    ''


    KA - US - 49 State Spec

    • $13.48

  • 016

    bolt, flange (12x80)

    Part Number: 90182-TA0-A00

    ''


    KA - US - 49 State Spec

    • $3.83

  • 017

    nut, shock absorber flange (10mm)

    Part Number: 90300-S84-A00

    ''


    KA - US - 49 State Spec

    • $0.65

  • 018

    nut, self-lock (10mm) (nylon) (showa)

    Part Number: 90364-SG0-004

    ''


    KA - US - 49 State Spec

    • $1.38
