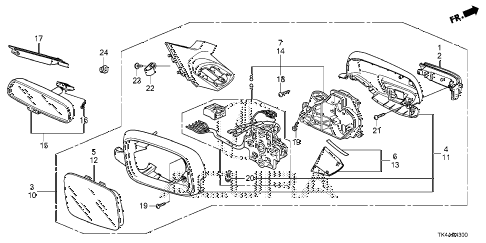

2013 TL ADV 4 DOOR 6AT MIRROR diagram
  • 001

    lamp unit, r. side turn (coo)

    • Part Number: 34301-STX-306

    '


    KA - US - 49 State Spec

    • $48.18

  • 002

    lamp unit, l. side turn (coo)

    • Part Number: 34351-STX-306

    '


    KA - US - 49 State Spec

    • $48.18

  • 003

    mirror assy., r. door *nh731p*

    • Part Number: 76200-TK4-A01ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $352.97

  • 003

    mirror assy., r. door *nh788p*

    • Part Number: 76200-TK4-A01ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $262.79

  • 003

    mirror assy., r. door *nh782m*

    • Part Number: 76200-TK4-A01ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $262.79

  • 003

    mirror assy., r. door *nh700m*

    • Part Number: 76200-TK4-A01ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $352.97

  • 003

    mirror assy., r. door *r548p*

    • Part Number: 76200-TK4-A01ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $352.97

  • 003

    mirror assy., r. door *b588p*

    • Part Number: 76200-TK4-A01ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $352.97

  • 004

    housing set, r. *nh731p*

    • Part Number: 76201-TK4-A02ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 004

    housing set, r. *nh788p*

    • Part Number: 76201-TK4-A02ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 004

    housing set, r. *nh782m*

    • Part Number: 76201-TK4-A02ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $61.75

  • 004

    housing set, r. *nh700m*

    • Part Number: 76201-TK4-A02ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $61.75

  • 004

    housing set, r. *r548p*

    • Part Number: 76201-TK4-A02ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $61.75

  • 004

    housing set, r. *b588p*

    • Part Number: 76201-TK4-A02ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 005

    mirror sub-assy., r. (r1400) (heated)

    • Part Number: 76203-TK4-A01

    '


    KA - US - 49 State Spec

    • $41.08

  • 006

    cover set, r. base *nh731p*

    • Part Number: 76205-TK4-A02ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 006

    cover set, r. base *nh788p*

    • Part Number: 76205-TK4-A02ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 006

    cover set, r. base *nh782m*

    • Part Number: 76205-TK4-A02ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $23.38

  • 006

    cover set, r. base *nh700m*

    • Part Number: 76205-TK4-A02ZP

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $23.38

  • 006

    cover set, r. base *r548p*

    • Part Number: 76205-TK4-A02ZQ

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $23.38

  • 006

    cover set, r. base *b588p*

    • Part Number: 76205-TK4-A02ZR

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 007

    bracket, r. (r.c.)

    • Part Number: 76207-TK4-A02

    '


    KA - US - 49 State Spec

    • $137.20

  • 008

    actuator, r. (memory)

    • Part Number: 76210-TK4-A01

    '


    KA - US - 49 State Spec

    • $88.25

  • 009

    actuator, l. (memory)

    • Part Number: 76215-TK4-A01

    '


    KA - US - 49 State Spec

    • $88.25

  • 010

    mirror assy., l. door *nh731p*

    • Part Number: 76250-TK4-A01ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $354.39

  • 010

    mirror assy., l. door *nh788p*

    • Part Number: 76250-TK4-A01ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $348.47

  • 010

    mirror assy., l. door *nh782m*

    • Part Number: 76250-TK4-A01ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $348.47

  • 010

    mirror assy., l. door *nh700m*

    • Part Number: 76250-TK4-A01ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $348.47

  • 010

    mirror assy., l. door *r548p*

    • Part Number: 76250-TK4-A01ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $348.47

  • 010

    mirror assy., l. door *b588p*

    • Part Number: 76250-TK4-A01ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $354.39

  • 011

    housing set, l. *nh731p*

    • Part Number: 76251-TK4-A02ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 011

    housing set, l. *nh788p*

    • Part Number: 76251-TK4-A02ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 011

    housing set, l. *nh782m*

    • Part Number: 76251-TK4-A02ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $61.75

  • 011

    housing set, l. *nh700m*

    • Part Number: 76251-TK4-A02ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $61.75

  • 011

    housing set, l. *r548p*

    • Part Number: 76251-TK4-A02ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $61.75

  • 011

    housing set, l. *b588p*

    • Part Number: 76251-TK4-A02ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $61.75

  • 012

    mirror, l. (flat)(heated)

    • Part Number: 76253-TK4-A01

    '


    KA - US - 49 State Spec

    • $41.08

  • 013

    cover set, l. base *nh731p*

    • Part Number: 76255-TK4-A02ZD

    (CRYSTAL BLACK PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 013

    cover set, l. base *nh788p*

    • Part Number: 76255-TK4-A02ZL

    (WHITE ORCHID PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 013

    cover set, l. base *nh782m*

    • Part Number: 76255-TK4-A02ZM

    (GRAPHITE LUSTER METALLIC)

    '


    KA - US - 49 State Spec

    • $23.38

  • 013

    cover set, l. base *nh700m*

    • Part Number: 76255-TK4-A02ZN

    (SILVER METALLIC)

    '


    KA - US - 49 State Spec

    • $23.38

  • 013

    cover set, l. base *r548p*

    • Part Number: 76255-TK4-A02ZP

    (BASQUE RED PEARL II)

    '


    KA - US - 49 State Spec

    • $23.38

  • 013

    cover set, l. base *b588p*

    • Part Number: 76255-TK4-A02ZQ

    (OBSIDIAN BLUE PEARL)

    '


    KA - US - 49 State Spec

    • $23.38

  • 014

    bracket, l. (r.c.)

    • Part Number: 76257-TK4-A02

    '


    KA - US - 49 State Spec

    • $137.20

  • 015

    mirror assy., rearview (auto day/night)

    • Part Number: 76400-TK4-A01

    '


    KA - US - 49 State Spec

    • $156.25

  • 016

    screw, torx (#10 x 3/8)

    • Part Number: 76406-SEC-A01

    '


    KA - US - 49 State Spec

    • $3.80

  • 017

    cover, rearview mirror

    • Part Number: 76410-SEC-A01

    '


    KA - US - 49 State Spec

    • $11.68

  • 018

    screw, tapping (4x14)

    • Part Number: 90109-SDF-003

    '


    KA - US - 49 State Spec

    • $1.45

  • 019

    screw, tapping (4x20) (truss)

    • Part Number: 90109-SEA-003

    '


    KA - US - 49 State Spec

    • $1.35

  • 020

    screw-washer (5x12)

    • Part Number: 90109-TA0-003

    '


    KA - US - 49 State Spec

    • $1.60

  • 021

    screw, tapping (3.5x14)

    • Part Number: 90109-TK4-A01

    '


    KA - US - 49 State Spec

    • $0.60

  • 022

    clamp, harness

    • Part Number: 91565-SEA-003

    '


    KA - US - 49 State Spec

    • $2.03

  • 023

    screw, tapping (4x10)

    • Part Number: 93903-24280

    '


    KA - US - 49 State Spec

    • $0.85

  • 024

    nut, flange (6mm)

    • Part Number: 94050-06080

    '


    KA - US - 49 State Spec

    • $0.23
