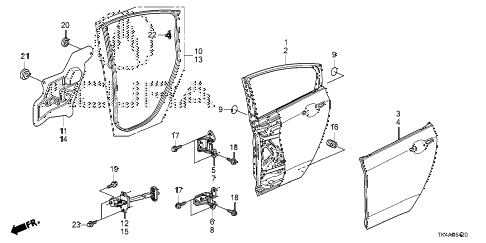

2013 TL ADV 4 DOOR 6AT REAR DOOR PANELS diagram
Back to Top
panel, r. rr. door (dot)panel, l. rr. door (dot)skin, r. rr. doorskin, l. rr. doorhinge, r. rr. door (upper)hinge, r. rr. door (lower)hinge, l. rr. door (upper)hinge, l. rr. door (lower)seal, handle hole (outer)seal, handle hole (outer)weatherstrip, r. rr. doorseal, r. rr. door holechecker, r. rr. doorweatherstrip, l. rr. doorseal, l. rr. door holechecker, l. rr. doorstopper, doorbolt, flange (8x24.5) (10.5mm)bolt, flange (8x24.5) (10.5mm)bolt, flange (8x18) (service)bolt, flange (8x18) (service)bolt, flange (8x22) (torx)bolt, flange (8x22) (torx)bolt, flange (8x22)grommet (11mm)grommet (20mm)clip abolt-washer (6x16)
